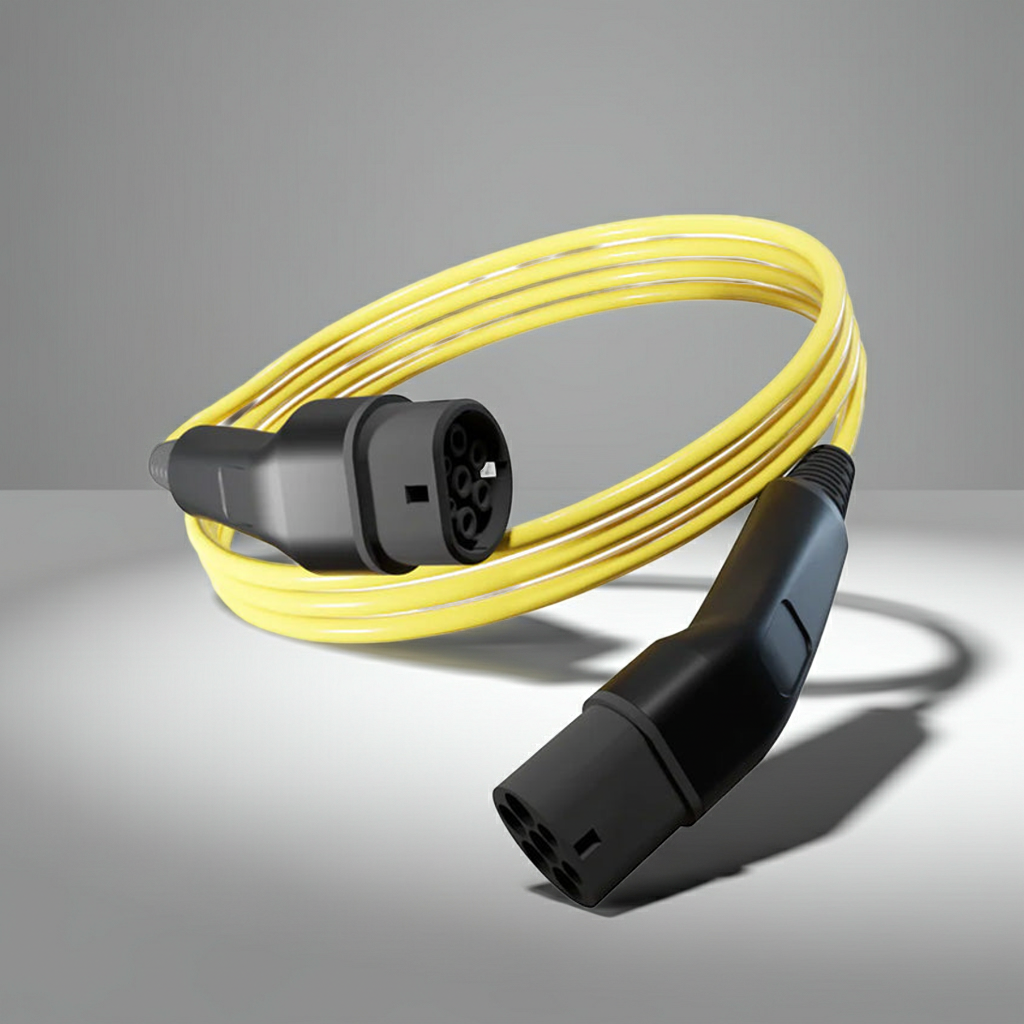

25m EV Charging Cables
25m is a specialist length for UK properties where parking and power sit a long way apart: long driveways, courtyards behind the house, charging from a workshop or detached garage, shared rural drives. Available in 7kW (32A single-phase) and 22kW (32A three-phase), Type 2 to Type 2, with halogen-free woven jackets that resist cracking through cold UK winters.
For most homes 10-20m is plenty, so start with 10m or 20m cables. Buy 25m only once you have measured the run, because longer cables are heavier to coil and harder to store. 2-year warranty, free UK delivery over £150.
Which car is it?
We'll preselect the variant that fits.
Products
Nothing matches those filters
Try widening the length or power range - or let your registration decide.
ClearChoosing the right cable length
A 25m EV charging cable is in long-reach territory, the answer for properties where the wallbox is in one part of the building and the parking spot is genuinely far away. Farmhouses, large rural plots, courtyard parking, semi-detached terraces with the only viable wallbox location 20+ metres from where the car sits, multi-vehicle households where one wallbox is shared across distant bays. It's not a length anyone uses casually; it's the right answer when nothing shorter reaches.
When 25m is necessary
- Detached property with the consumer unit in an outbuilding: wallbox install in the workshop, parking by the front door.
- Shared driveway across multiple plots: neighbours sharing infrastructure or one wallbox split between two homes.
- Courtyard parking: wallbox on the perimeter wall, parking in the centre.
- Holiday lets and small B&Bs where guest parking is far from the property.
- Caravan and motorhome owners using the cable from a wallbox at home to charge a remote storage location.
When 25m is the wrong answer
25m of EV cable is heavy (about 6kg for 7.4kW) and bulky. If your driveway is shorter than 12m, get a 15m or 10m cable instead: easier to coil, lighter to carry, less expensive. And if the issue is "the wallbox is just inconveniently placed", the proper fix is moving the wallbox or installing a second tethered wallbox closer to the car, that's a one-off install cost vs. years of wrestling with an oversized cable.
Voltage drop: the technical reason longer is harder
Voltage drops along the length of a cable as current flows. At 25m on standard EV cable conductors (2.5mm² for 16A, 4mm² or 6mm² for 32A) the voltage drop is small but non-zero, typically 1-2% at full load. UK wiring regs allow 5% from the consumer unit to the load, and the cable contributes part of that. In practice this means:
- You won't notice charging speed loss at 7.4kW on a 25m cable with 6mm² conductors, it's well within the regulatory headroom.
- 22kW three-phase cables at 25m are pushing the comfort zone; some manufacturers de-rate to 16A on 25m+ runs.
- The wallbox install matters more than the cable: a bad cable run from consumer unit to wallbox is a much bigger source of voltage drop than the EV cable itself.
Construction quality on long cables
Long cables magnify quality issues: a cheap cable that's marginally OK at 5m is a mess at 25m. Insist on:
- OFC (oxygen-free copper) conductors sized correctly for the rating: 4mm² for 16A, 6mm² for 32A single-phase, 6mm² per core for 32A three-phase.
- TPU outer sheath: stays flexible at sub-zero UK winter temperatures. PVC stiffens and cracks.
- Reinforced strain reliefs at both connectors: these are where long cables typically fail first.
- UV-stable colouring: 25m of cable spends some of its life in sunlight; cheap cables fade and the sheath cracks within 2-3 summers.
Storage and handling
25m of cable doesn't go in a boot bag. It lives at home, on a proper holder. A wall-mounted cable holder with a coil cradle is the difference between "5 seconds to plug in" and "5 minutes wrestling with cable spaghetti". Coil it loosely (figure-8 or large loops): tight winding stresses the conductors and shortens the cable's life.
