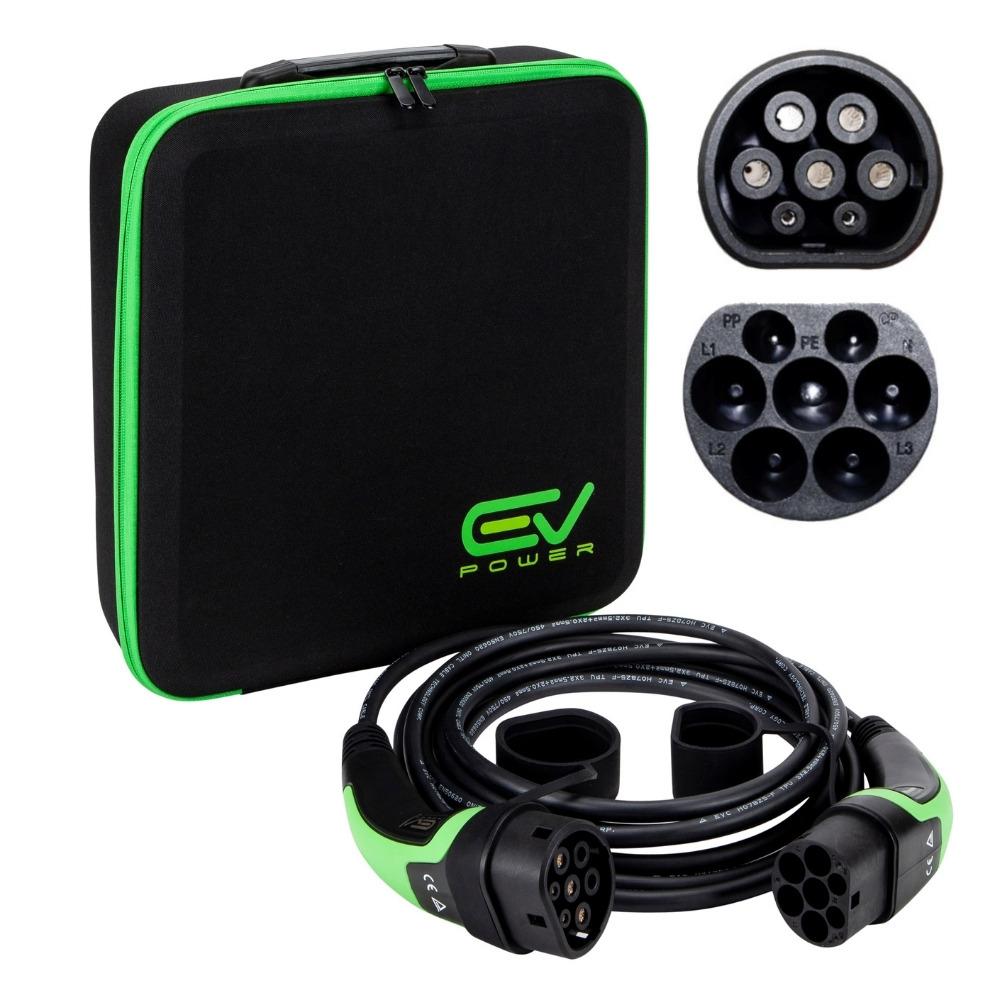

Type 2 to Type 2 Charging Cable
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
If your car takes a Type 2 to Type 2 cable, this is the one. We supply 16amp, 32amp and three-phase versions in four lengths: 5m, 10m, 15m and 20m. Need something outside that range? Call the sales team and we will sort it. Audi, BMW, Volvo, Mini, Mercedes, Kia, Hyundai, Volkswagen, Smart and Toyota are among the manufacturers using Type 2 to Type 2 connectors, so the fitment covers a large slice of the UK car park.
These cables are durable and impact resistant, and they will charge your vehicle from both domestic and commercial charging stations. Every one is IP55 rated and IEC, TÜV and CE compliant, with an operating range of -30°C to +60°C. That covers a British winter with a good deal of margin to spare.
What comes with every Type 2 to Type 2 cable
- 2 year replacement warranty
- Free next working day delivery on orders over £150
- Premium lightweight heavy duty cable
- Compatible with all charging stations
- Compatible with all Type 2 electric and plug-in hybrid vehicles
- TÜV certified cable and connectors
How to use it
Simple enough. The smaller male plug goes into the charger, and the larger female plug goes into the vehicle. Rated power runs 3.6kW, 7.2kW or 22kW depending on the current and phase you choose, with 2.5 to 6mm² copper conductors sized to the rating. See the full length and rating range in Type 2 charging cables.
Specifications
- Connector
- Type 2 to Type 2
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m, 20m
- Rated power
- 3.6kW / 7.2kW / 22kW
- Current
- 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Will this cable fit my car?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
