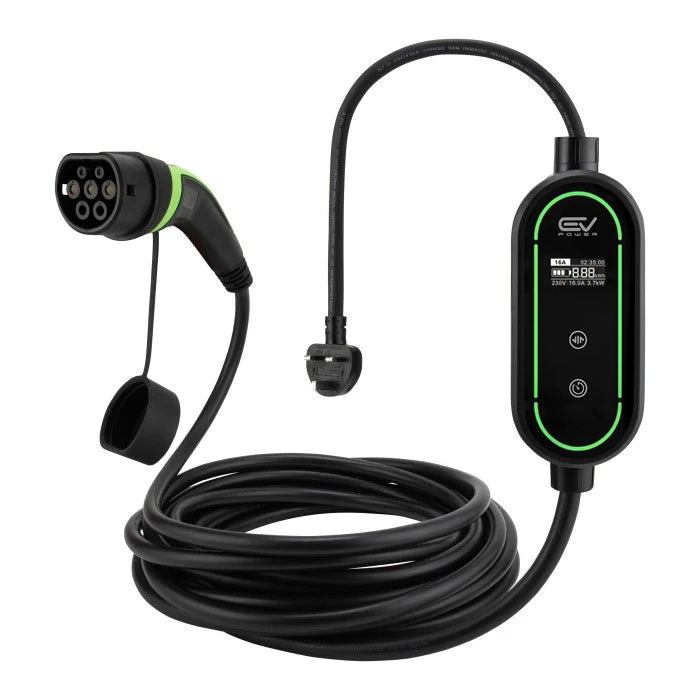

Type 2 to 3 Pin Charging Cable: V4
Type 2 EV charging cable
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
Our Type 2 to 3 Pin charging cable, version 4, is a portable lead built from weather-resistant materials for a long working life. One end is a 3-pin socket plug, the other a Type 2 connector, so it will charge an EV from an ordinary domestic supply with nothing to install.
The useful part is the adjustable current, which runs from 6A to 13A. Dial it down to suit an older domestic circuit or a socket you are not certain about, or run it higher where the circuit comfortably allows it.
Key specifications
- Operating temperature: -30°C to +65°C
- Storage temperature: -40°C to +80°C
- Current: adjustable 6 to 13 amps
- IP67 weatherproof rating
- CE certified and TUV certified
- Type 2 plug (IEC 62196 / Mennekes)
- 24 month manufacturer warranty
- Free next-working-day UK delivery on orders over £150
- Available in 5m, 10m and 15m
Not sure which portable Type 2 charger you need? Get in touch, or compare the alternatives in our granny charger range.
Specifications
- Connector
- Type 2 to 3-Pin
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m
- Rated power
- 2.4kW
- Current
- 6–13A
- Phase
- Single-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP67
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP67 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Type 2 vehicle fit
Works with all Type 2 electric vehicles, charging from a standard UK domestic socket.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
Charges from a 3-pin socket
Plugs straight into a standard UK domestic socket, so you can top up anywhere there is a normal plug.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Will this cable fit my car?
Which cable length should I choose?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
