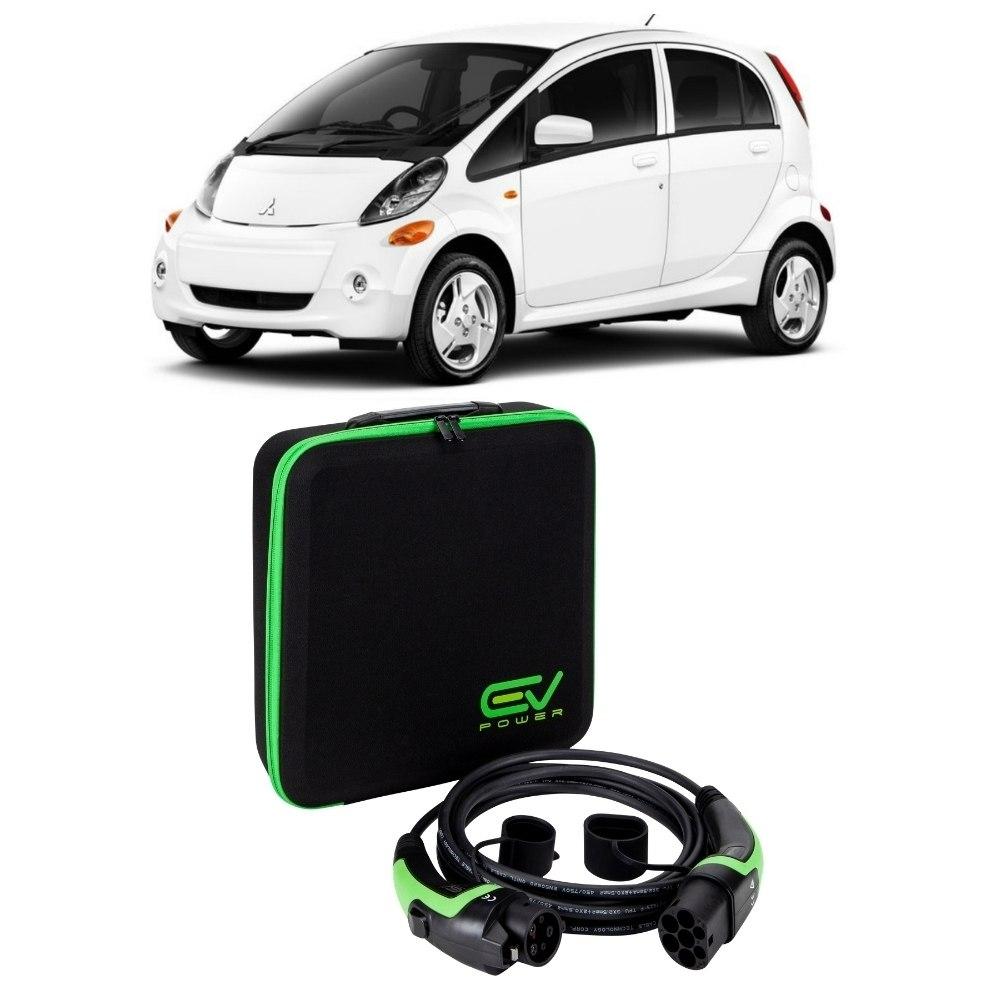

Mitsubishi i-MiEV Charging Cable
Gallery filters to selection
Operating temperature -30°C to +60°C
Current 6–12A / 16A / 32A
Rated power 2.3kW / 3.6kW / 7.2kW
Cable lengths 5m, 10m
Type 25m: 10mUp to 7.4kWHome & Public

Mitsubishi i-MiEV Charging Cable

Type 2 EV charging cable, up to 7.4kW

From £130.99complete your selection for the exact price
Choose a Cable Type:
Choose a Cable Length:Wallbox to port, then add 2m
Choose a Rated Power (Charge Speed):
Selected Not with this selection Sold out / locked
Add a storage bag?
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free next-working-day delivery - order before 4pm
  • 30-day returns, we pay the postage if it doesn't fit
  • 2-year minimum manufacturer warranty, and we handle the claim
  • UK-based support, 8am-6pm, from people who drive EVs

Overview

The i-MiEV takes a Type 1 to Type 2 cable: Type 1 at the car, Type 2 at the charge point. We supply it in 16amp and 32amp versions, in two lengths, 5m and 10m. Built to UK and EU standards, it lets you charge from a household supply, a workplace unit or any public charging point with a Type 2 socket, feeding a vehicle with a Type 1 inlet at up to 3.7kW.

That 3.7kW figure is worth understanding. It is the ceiling the car itself imposes, so a higher-rated cable will not shorten the charge. Choose on length and build quality instead, because those are the parts you actually notice.

Type Capacity Time to charge Our recommendation
Type 1, 1-phase, 16A 3.7 kW 4h 15m Best fit
Type 1, 1-phase, 32A 7.4 kW 4h 15m

How it is made

  • Extra-thick cable, TÜV and CE certified
  • Protective rubber caps to keep the connectors clean between charges
  • Each connector pin insulated with a plastic covering
  • 24 month manufacturer warranty
  • Type 1 to Type 2 connector, 16 and 32amp

The insulated pins and capped connectors are the details that decide whether a cable is still working properly in three years, and they are why we are happy putting our name to this one. Free UK delivery on orders over £150. Browse the rest of the range in EV charging cables.

The rest of the Mitsubishi range sits on our Mitsubishi charging cables page.

Specifications

Connector
Type 1 to Type 2 / 3-Pin
Standard
IEC 62196-2 Type 1 (SAE J1772), 5-pin
Cable lengths
5m, 10m
Rated power
2.3kW / 3.6kW / 7.2kW
Current
6–12A / 16A / 32A
Phase
Single-phase
Conductor
2.5-6mm² copper (by current rating)
Weatherproofing
IP55
Operating temperature
-30°C to +60°C
Build
Run-over proof (drive-over resistant)
Certifications
CE marked, TÜV certified, IEC 62196-2 (Type 1)
Warranty
24 months (2 years) manufacturer warranty

Features

  • Run-over proof

    Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).

  • All-weather rated

    Rated IP55 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.

  • Type 1 vehicle fit

    Made for Type 1 (SAE J1772) electric vehicles. The Type 2 version plugs into any UK/EU home wallbox or public AC charge point.

  • CE / TÜV certified

    Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 1 (SAE J1772) connector standard.

  • 3-pin option for home sockets

    Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.

Installation

  1. 01Unlock the car - most won't accept a cable while locked.
  2. 02Wallbox end first, then the car. Push until the latch clicks.
  3. 03Check the car shows a charging state before you walk away.
  4. 04Coil loosely into the bag - no tight figure-of-eights.

In the box

  • Charging cable Charging cable 1

FAQs

Is this cable compatible with the Mitsubishi i-Mi?
It will, yes. This is a Type 2 charging cable and the Mitsubishi i-Mi uses a Type 2 inlet. If you're unsure, check your car's charge port has a 7-pin Type 2 socket, or use our reg checker.
Which cable length should I choose?
Most driveways are fine with 5m. Choose 7-10m if the charge point is wall-mounted away from where you park or your charge port is on the far side of the car, and 15-20m for on-street or awkward layouts. Available here in 5m, 10m.
Can I use it at public charge points as well as at home?
Yes. This is a Mode 3 Type 2 cable, so it works at your home wallbox and at any untethered public AC charge point. Rapid DC chargers (motorway) come with their own tethered cables, so you don't need one for those.
What's the 3-pin option for?
The 3-pin (Mode 2 'granny') option lets you top up from a standard domestic socket at up to ~2.3kW when you're away from a wallbox. It's a backup for occasional use, not a daily charging method.
Is it safe to leave outside in the rain?
Yes. The cable and connectors are rated IP55 and built for -30°C to +60°C, so they're safe in UK rain, frost and snow. Don't submerge the connectors in standing water.
What warranty and delivery do I get?
Free next-working-day UK delivery on orders over £150, with 30-day returns on unused items. Warranty: 24 months (2 years) manufacturer warranty.

Compatibility

  • Mitsubishi i-Mi
  • All Type 2 electric vehicles (UK & EU, most post-2018)
  • Charger: Ohme
  • Charger: Pod Point
  • Charger: Zappi
  • Charger: Hypervolt
  • Charger: myenergi
  • Charger: Wallbox
  • Charger: EO
  • Charger: Andersen
  • Charger: Tesla
Type 1 to 3 Pin Charging Cable / 5M / 6amp – 12amp Adjustable (2.3kW) £215.00
