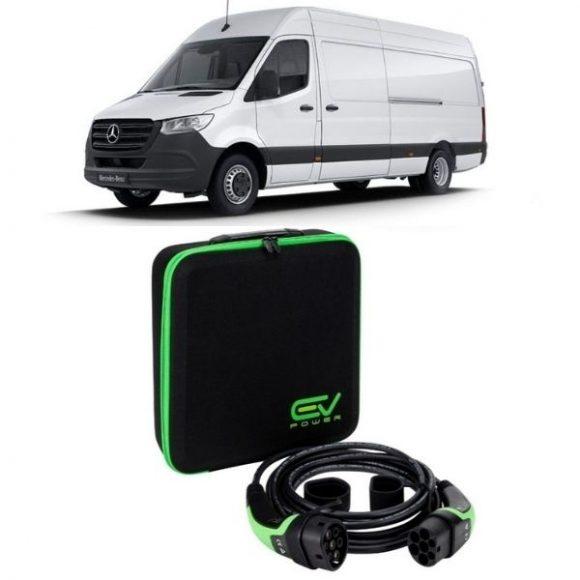

Mercedes eSprinter Charging Cable
Gallery filters to selection
Operating temperature -30°C to +60°C
Current 6–12A / 16A / 32A
Cable lengths 5m, 10m, 15m, 20m
Connector Type 2 to Type 2 / 3-Pin
Type 25m: 20mUp to 22kW1 & 3 PhaseHome & Public

Mercedes eSprinter Charging Cable

Type 2 EV charging cable: up to 22kW, single and three-phase

In stock
From £124.99complete your selection for the exact price
Choose a Cable Type:
Choose a Cable Length:Wallbox to port, then add 2m
Choose a Rated Power (Charge Speed):
Selected Not with this selection Sold out / locked
Add a storage bag?
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free next-working-day delivery - order before 4pm
  • 30-day returns, we pay the postage if it doesn't fit
  • 2-year minimum manufacturer warranty, and we handle the claim
  • UK-based support, 8am-6pm, from people who drive EVs

Overview

We supply a full range of Mercedes eSprinter charging cables, and the dropdowns below let you build the one that fits your van and your yard. There are really only two decisions to make.

Length. We stock 5m, 10m and 15m. A van rarely parks in the same spot twice, so err towards the longer end if the charge point is fixed and the parking is not.

Current. This is what sets your charging speed. A three-phase charging cable will always charge at the fastest rate the van and the supply allow, and it works just as happily at lower speeds, so it is the safe choice if you are not sure what you will be plugging into next.

  • Type 2 to Type 2 charging cable
  • IP55 rated cable
  • 24 month manufacturer warranty
  • Free next working day UK delivery on orders over £150
Type Capacity Our recommendation
Type 2, 1-phase, 16A 3.7 kW
Type 2, 1-phase, 32A 7.4 kW
Type 2, 3-phase, 32A 22 kW Best fit

For fleets running on a three-phase supply, our 22kW charging cables are the place to start.

Other Mercedes fitments are grouped on our Mercedes charging cables page.

Specifications

Connector
Type 2 to Type 2 / 3-Pin
Standard
IEC 62196-2 (Type 2 / MENNEKES), 7-pin
Cable lengths
5m, 10m, 15m, 20m
Rated power
2.3kW / 3.6kW / 7.2kW / 22kW
Current
6–12A / 16A / 32A
Phase
Single & Three-phase
Conductor
2.5-6mm² copper (by current rating)
Weatherproofing
IP55 (IP67 on Type 2 to 3-Pin)
Operating temperature
-30°C to +60°C
Build
Run-over proof (drive-over resistant)
Certifications
CE marked, TÜV certified, IEC 62196-2 (Type 2)
Warranty
24 months (2 years) manufacturer warranty

Features

  • Run-over proof

    Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).

  • All-weather rated

    Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.

  • Universal Type 2 fit

    Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.

  • CE / TÜV certified

    Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.

  • 3-pin option for home sockets

    Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.

  • Three-phase option

    Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.

Installation

  1. 01Unlock the car - most won't accept a cable while locked.
  2. 02Wallbox end first, then the car. Push until the latch clicks.
  3. 03Check the car shows a charging state before you walk away.
  4. 04Coil loosely into the bag - no tight figure-of-eights.

In the box

  • Charging cable Charging cable 1

FAQs

Is this cable compatible with the Mercedes eSprinter?
It will, yes. This is a Type 2 charging cable and the Mercedes eSprinter uses a Type 2 inlet. If you're unsure, check your car's charge port has a 7-pin Type 2 socket, or use our reg checker.
Which cable length should I choose?
Most driveways are fine with 5m. Choose 7-10m if the charge point is wall-mounted away from where you park or your charge port is on the far side of the car, and 15-20m for on-street or awkward layouts. Available here in 5m, 10m, 15m, 20m.
Do I need the 22kW (three-phase) option?
Only if you have a three-phase supply, or you want to be ready for 22kW public AC posts. A three-phase cable still works on a standard single-phase home wallbox; it just charges at up to 7.4kW. Most UK homes are single-phase.
Can I use it at public charge points as well as at home?
Yes. This is a Mode 3 Type 2 cable, so it works at your home wallbox and at any untethered public AC charge point. Rapid DC chargers (motorway) come with their own tethered cables, so you don't need one for those.
What's the 3-pin option for?
The 3-pin (Mode 2 'granny') option lets you top up from a standard domestic socket at up to ~2.3kW when you're away from a wallbox. It's a backup for occasional use, not a daily charging method.
Is it safe to leave outside in the rain?
Yes. The cable and connectors are rated IP55 and built for -30°C to +60°C, so they're safe in UK rain, frost and snow. Don't submerge the connectors in standing water.
What warranty and delivery do I get?
Free next-working-day UK delivery on orders over £150, with 30-day returns on unused items. Warranty: 24 months (2 years) manufacturer warranty.

Compatibility

  • Mercedes eSprinter
  • All Type 2 electric vehicles (UK & EU, most post-2018)
  • Charger: Ohme
  • Charger: Pod Point
  • Charger: Zappi
  • Charger: Hypervolt
  • Charger: myenergi
  • Charger: Wallbox
  • Charger: EO
  • Charger: Andersen
  • Charger: Tesla
Type 2 to Type 2 Charging Cable / 10M / 16amp (3.6kW) £156.99
