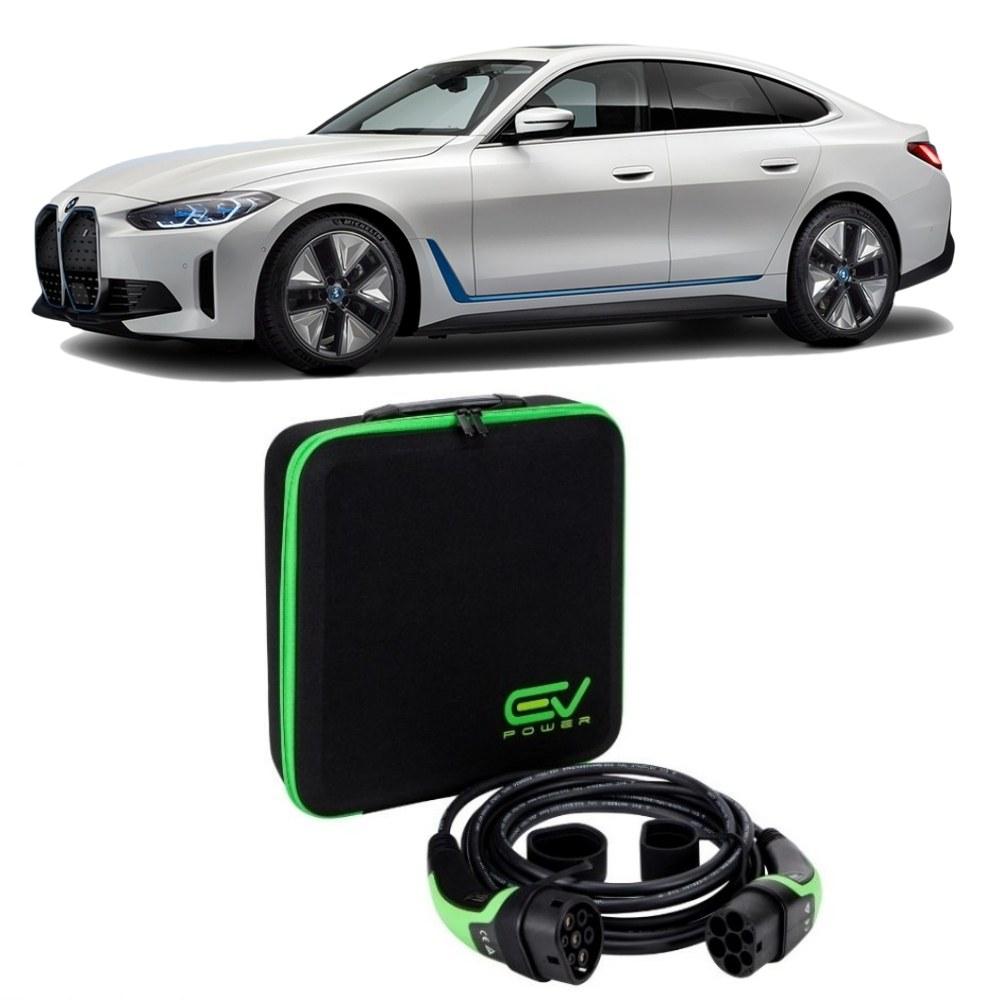

BMW i4 EV Charging Cable
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
BMW's i4 is the electric Gran Coupé, sharing its body with the 4 Series and putting a single or twin motor drivetrain underneath. In eDrive40 trim the WLTP figure runs to 365 miles, which puts it among the longest legged cars BMW sells.
AC charging happens through a Type 2 (Mode 3) socket, and the onboard charger is rated at 11kW. There is a catch worth understanding before you spend money on a cable. Drawing 11kW requires a three-phase supply, and the overwhelming majority of UK homes are single-phase. On an ordinary 7.4kW home wallbox the i4 takes the full 7.4kW and needs about eleven hours from empty, so an overnight charge covers it with room left over. Where three-phase is available, at home or on a 22kW public post, a 32A three-phase lead lets the car pull its full 11kW and brings that figure down to roughly seven and a half hours.
DC rapid charging is a separate matter, and it needs no cable from us. The eDrive40 and M50 accept up to 205kW through the car's CCS port, which is about a half-hour stop from 10 to 80%, run on the charger's own tethered lead.
Picking your cable
- Type 2 to Type 2. The lead nearly every i4 owner wants. It covers home wallboxes and public posts across the UK. 5m is plenty where the car sits beside the box; go to 10m if the unit is on the far wall, or if you park nose-in on the street.
- Type 2 to 3-pin. A Mode 2 lead for emergencies and occasional top-ups from a household socket. At 2.3kW it is slow and it is not meant to be your main charger, but it earns its place in the boot.
Everything we sell is CE and TUV certified, IP66 rated against British weather, and carries a two-year warranty. Browse the full Type 2 cable range.
Other BMW fitments are grouped on our BMW charging cables page.
Specifications
- Connector
- Type 2 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m, 20m
- Rated power
- 2.3kW / 3.6kW / 7.2kW / 22kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55 (IP67 on Type 2 to 3-Pin)
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the BMW i4?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- BMW i4
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
