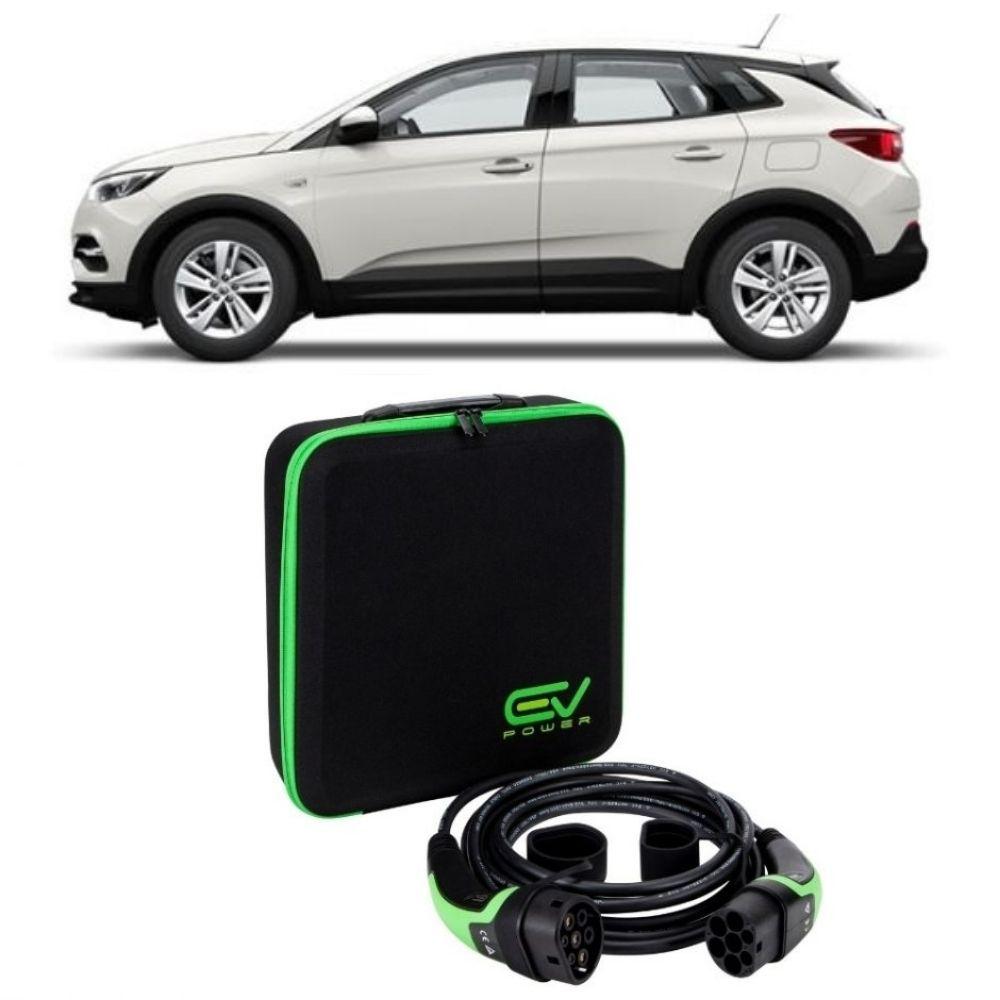

Vauxhall Grandland X Hybrid Charging Cable
Gallery filters to selection
Operating temperature -30°C to +60°C
Current 6–12A / 16A / 32A
Cable lengths 5m, 10m, 15m, 20m
Connector Type 2 to Type 2 / 3-Pin
Type 25m: 20mUp to 22kW1 & 3 PhaseHome & Public

Vauxhall Grandland X Hybrid Charging Cable

Type 2 EV charging cable: up to 22kW, single and three-phase

In stock
From £124.99complete your selection for the exact price
Choose a Cable Type:
Choose a Cable Length:Wallbox to port, then add 2m
Choose a Rated Power (Charge Speed):
Selected Not with this selection Sold out / locked
Add a storage bag?
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free next-working-day delivery - order before 4pm
  • 30-day returns, we pay the postage if it doesn't fit
  • 2-year minimum manufacturer warranty, and we handle the claim
  • UK-based support, 8am-6pm, from people who drive EVs

Overview

The Grandland X Hybrid pairs a 1.6 litre petrol engine with two electric motors, and depending on the version it carries either a 3.7kW or a 7.4kW onboard charger. That distinction is the only thing that really matters when you are choosing a cable, so check which one you have before ordering.

Either way, the car needs a Type 2 to Type 2 EV charging cable. We keep 5m and 10m in stock and can source other lengths on request. All our leads are compatible with European and UK standard charging points, are approved and certified by TUV and CE, and are completely weatherproof for long life and durability. Rubber caps protect the connectors when the cable is coiled up.

Charging times

Cable Capacity With 3.7kW onboard charger With 7.4kW onboard charger
Type 2, 1-phase, 16A 3.7 kW 3h45m (best fit) 3h45m
Type 2, 1-phase, 32A 7.4 kW 3h45m 2h00m (best fit)
Type 2, 3-phase, 32A 22 kW 3h45m 2h00m

The short version: with the 3.7kW charger the 16A lead is all you need, because the car cannot use anything more. With the 7.4kW charger, step up to 32A and save nearly two hours.

Two year manufacturer warranty and free next-working-day UK delivery on orders over £150. If you would like a hand choosing, email us or call the sales team.

The rest of the Vauxhall range sits on our Vauxhall charging cables page.

Specifications

Connector
Type 2 to Type 2 / 3-Pin
Standard
IEC 62196-2 (Type 2 / MENNEKES), 7-pin
Cable lengths
5m, 10m, 15m, 20m
Rated power
2.3kW / 3.6kW / 7.2kW / 22kW
Current
6–12A / 16A / 32A
Phase
Single & Three-phase
Conductor
2.5-6mm² copper (by current rating)
Weatherproofing
IP55 (IP67 on Type 2 to 3-Pin)
Operating temperature
-30°C to +60°C
Build
Run-over proof (drive-over resistant)
Certifications
CE marked, TÜV certified, IEC 62196-2 (Type 2)
Warranty
24 months (2 years) manufacturer warranty

Features

  • Run-over proof

    Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).

  • All-weather rated

    Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.

  • Universal Type 2 fit

    Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.

  • CE / TÜV certified

    Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.

  • 3-pin option for home sockets

    Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.

  • Three-phase option

    Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.

Installation

  1. 01Unlock the car - most won't accept a cable while locked.
  2. 02Wallbox end first, then the car. Push until the latch clicks.
  3. 03Check the car shows a charging state before you walk away.
  4. 04Coil loosely into the bag - no tight figure-of-eights.

In the box

  • Charging cable Charging cable 1

FAQs

Is this cable compatible with the Vauxhall Grandland X Hybrid?
Yes. The Vauxhall Grandland X Hybrid uses a Type 2 inlet and this is a Type 2 charging cable. If you'd like to double-check, your car's charge port should have a 7-pin Type 2 socket, or use our reg checker.
Which cable length should I choose?
Most driveways are fine with 5m. Choose 7-10m if the charge point is wall-mounted away from where you park or your charge port is on the far side of the car, and 15-20m for on-street or awkward layouts. Available here in 5m, 10m, 15m, 20m.
Do I need the 22kW (three-phase) option?
Only if you have a three-phase supply, or you want to be ready for 22kW public AC posts. A three-phase cable still works on a standard single-phase home wallbox; it just charges at up to 7.4kW. Most UK homes are single-phase.
Can I use it at public charge points as well as at home?
Yes. This is a Mode 3 Type 2 cable, so it works at your home wallbox and at any untethered public AC charge point. Rapid DC chargers (motorway) come with their own tethered cables, so you don't need one for those.
What's the 3-pin option for?
The 3-pin (Mode 2 'granny') option lets you top up from a standard domestic socket at up to ~2.3kW when you're away from a wallbox. It's a backup for occasional use, not a daily charging method.
Is it safe to leave outside in the rain?
Yes. The cable and connectors are rated IP55 and built for -30°C to +60°C, so they're safe in UK rain, frost and snow. Don't submerge the connectors in standing water.
What warranty and delivery do I get?
Free next-working-day UK delivery on orders over £150, with 30-day returns on unused items. Warranty: 24 months (2 years) manufacturer warranty.

Compatibility

  • Vauxhall Grandland X Hybrid
  • All Type 2 electric vehicles (UK & EU, most post-2018)
  • Charger: Ohme
  • Charger: Pod Point
  • Charger: Zappi
  • Charger: Hypervolt
  • Charger: myenergi
  • Charger: Wallbox
  • Charger: EO
  • Charger: Andersen
  • Charger: Tesla
Type 2 to Type 2 Charging Cable / 10M / 16amp (3.6kW) £156.99
