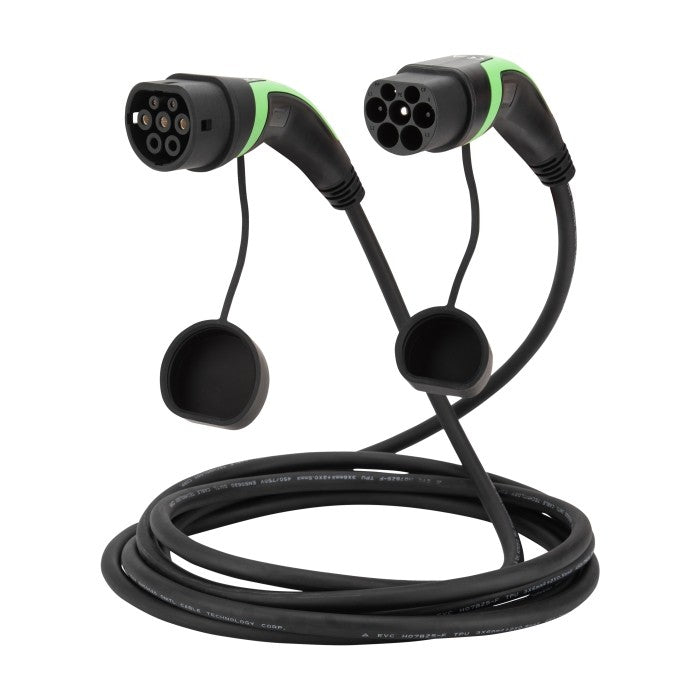

Type 2 to Type 2 - EV Extension Cable
Type 2 EV charging cable, up to 7.4kW
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
When your charging cable will not quite reach
Awkward parking, a charge point on the wrong wall, a public post with a short tether: there are plenty of situations where you end up a couple of metres short. A Type 2 to Type 2 extension is the purpose-built answer, with a Type 2 socket at one end and a Type 2 plug at the other, so it joins onto the lead you already own rather than working around it.
A word on what not to do. A domestic extension reel is not a substitute. It is not rated for hours of continuous high current, it is not built for outdoor charging duty, and it introduces a joint that nothing in the charging chain is designed to monitor. It is also worth checking your own equipment first, because not every charging setup is designed to be extended.
This extension is built to the same standard as the cables we sell:
- Type 2 to Type 2, IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- 16A or 32A single-phase, rated 3.6kW or 7.2kW
- 2.5-6mm² copper conductors, sized by current rating
- Available in 5m, 10m and 15m
- IP55 weatherproofing, run-over proof
- Operating range -30°C to +60°C
- CE marked, TÜV certified
- 24 month manufacturer warranty
Two practical points before you order. Match the current rating of your existing lead, because the extension should never be the weak link in the chain. And keep the joint off wet ground and clear of standing water. Browse the range in EV cable extensions.
Specifications
- Connector
- Type 2 to Type 2 extension
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m
- Rated power
- 3.6kW / 7.2kW
- Current
- 16A / 32A
- Phase
- Single-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Extends your existing cable
Adds reach between your Type 2 charging cable and the charge point — Type 2 plug at one end, Type 2 socket at the other.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Will this cable fit my car?
Which cable length should I choose?
Can I use it at public charge points as well as at home?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
