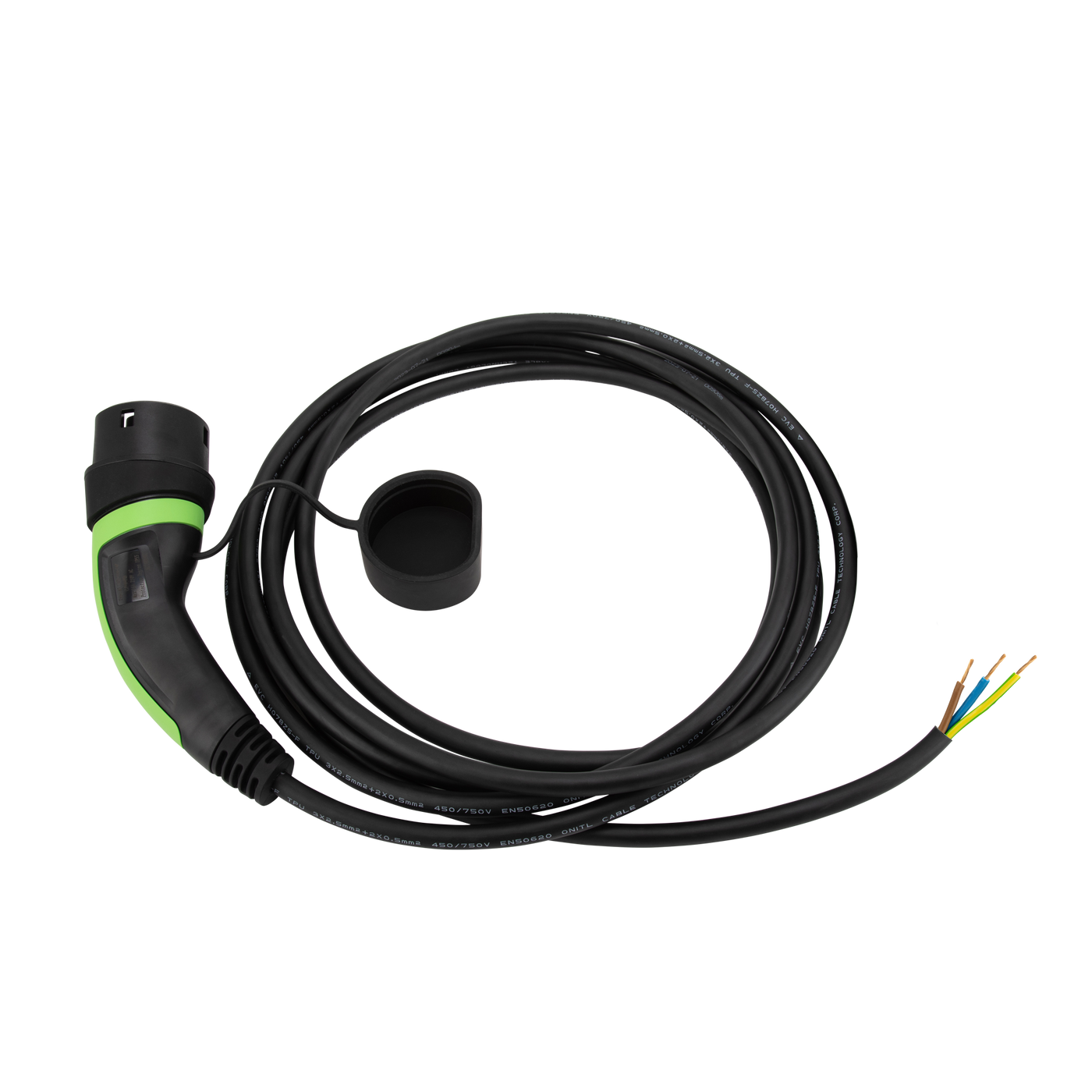

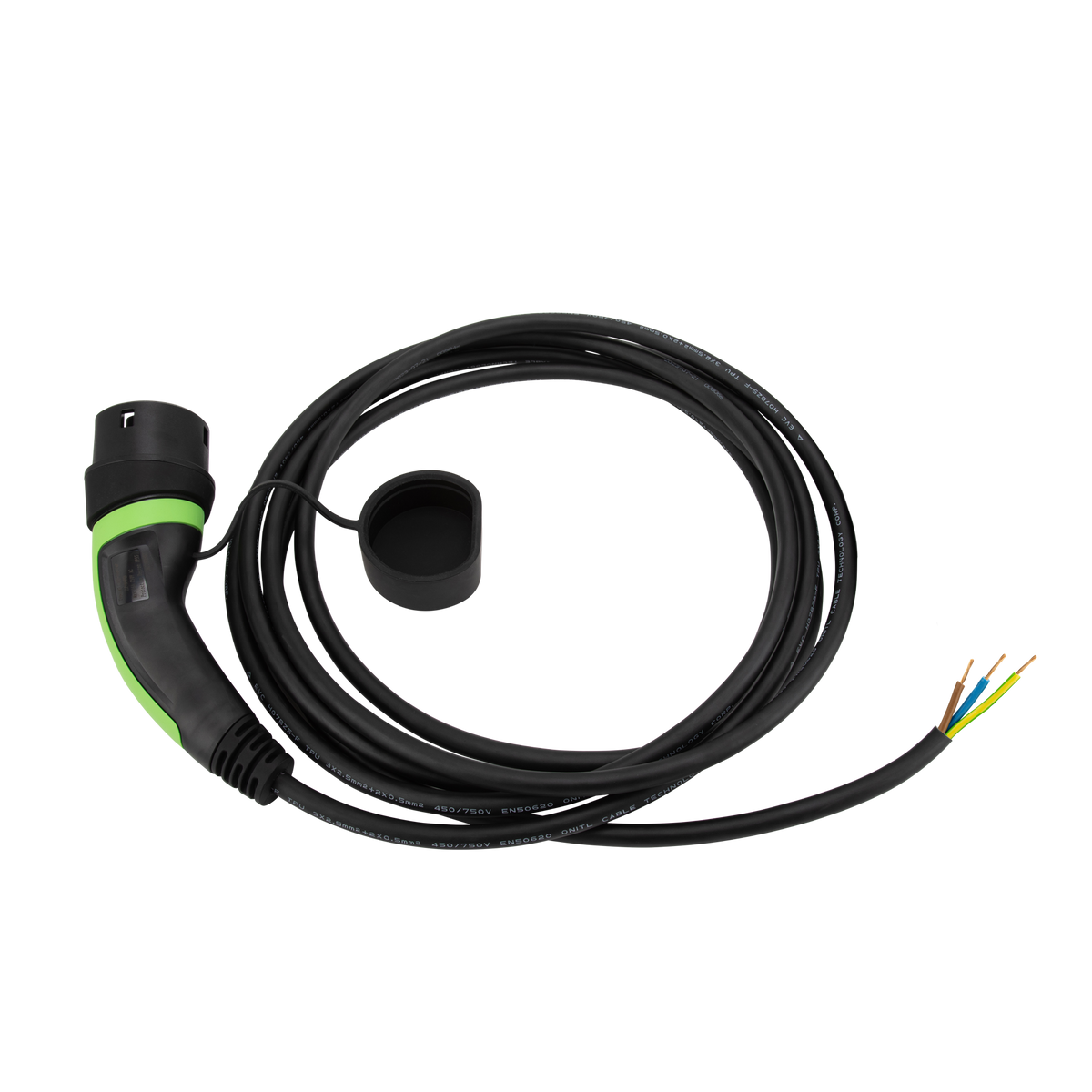

Type 2 Tethered Cables
Type 2 EV charging cable, up to 7.4kW
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
Why go tethered?
The main argument for a tethered Type 2 setup is simple: a cable that is attached to the unit is far harder to walk off with. Charging cables have become a target for thieves in the UK, seen as easy to take and worth good money, and a tethered lead removes most of that opportunity. It is not the only defence available, but it is the one that needs no thought from you once it is installed.
16 amp or 32 amp?
The honest answer is that it depends on your setup, and two numbers decide it. First, what is the maximum output of your charging station? If the unit tops out at 3.6kW, a 32amp tethered cable buys you nothing at all. Second, what will the car accept? A vehicle limited to 3.6kW is in the same position, and we would point you at a 16amp tethered lead. Where both the unit and the car can take more, the 32amp version is worth having. Our Type 2 charging cables cover both ratings.
Swapping a Type 1 tethered cable for Type 2
Good news first: yes, it can be done. It is just not as simple as swapping a phone charger for a laptop charger. Converting a charging station to take a Type 2 tethered cable is electrical work, so speak to the person who fitted the unit in the first place. They know the installation and can do it safely.
Specification
- Type 2 to Type 2, IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- 32A single-phase, rated 7.2kW
- 2.5 to 6mm² copper conductors by current rating
- IP55 rated and run-over proof
- Operating range -30°C to +60°C
- CE marked and TÜV certified
- Available in 5m and 10m
- 24 month manufacturer warranty
Specifications
- Connector
- Type 2 tethered
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m
- Rated power
- 7.2kW
- Current
- 32A
- Phase
- Single-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Type 2 tethered lead
A tethered Type 2 lead for use with a wallbox, working with all Type 2 electric vehicles.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Will this cable fit my car?
Which cable length should I choose?
Can I use it at public charge points as well as at home?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
