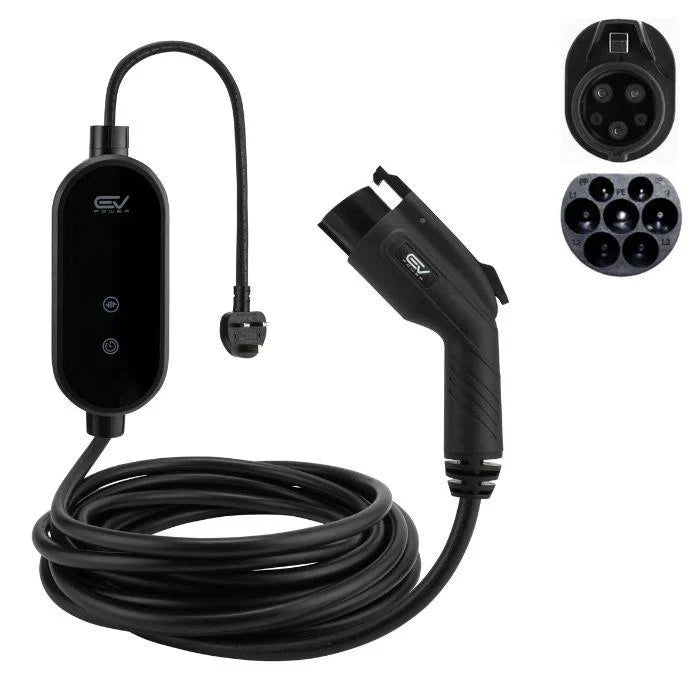

Type 1 to 3 Pin Charging Cable
Type 1 EV charging cable
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
Driving a Type 1 electric car without a charging station? This is the simplest solution we sell. One end plugs into a domestic socket, the other into your car, and that is the whole installation. No external charging station required.
- Plugs into any UK socket
- IP66 weatherproof
- Operating temperature: -30° to +50°
- CE certified / TUV certified
- Type 1 connector at the vehicle end
- Current: 10A
- Available in 5m and 10m
- Free next-working-day UK delivery on orders over £150
At 10A this is not a fast charger, and it was never meant to be. What it is good at is making sure you can always put charge into the car: at a relative's house, a holiday cottage, or at home on the nights when a charge point is not an option. Plenty of Type 1 owners keep one in the boot and never begrudge the space.
Supplied with a two-year manufacturer warranty. See the rest of the range in granny chargers.
Specifications
- Connector
- Type 1 to 3-Pin
- Standard
- IEC 62196-2 Type 1 (SAE J1772), 5-pin
- Cable lengths
- 5m, 10m
- Rated power
- 2.3kW
- Current
- 6–12A
- Phase
- Single-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 1)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Type 1 vehicle fit
Made for Type 1 (SAE J1772) electric vehicles, charging from a standard UK domestic socket.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 1 (SAE J1772) connector standard.
-
Charges from a 3-pin socket
Plugs straight into a standard UK domestic socket, so you can top up anywhere there is a normal plug.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Will this cable fit my car?
Which cable length should I choose?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- All Type 1 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
