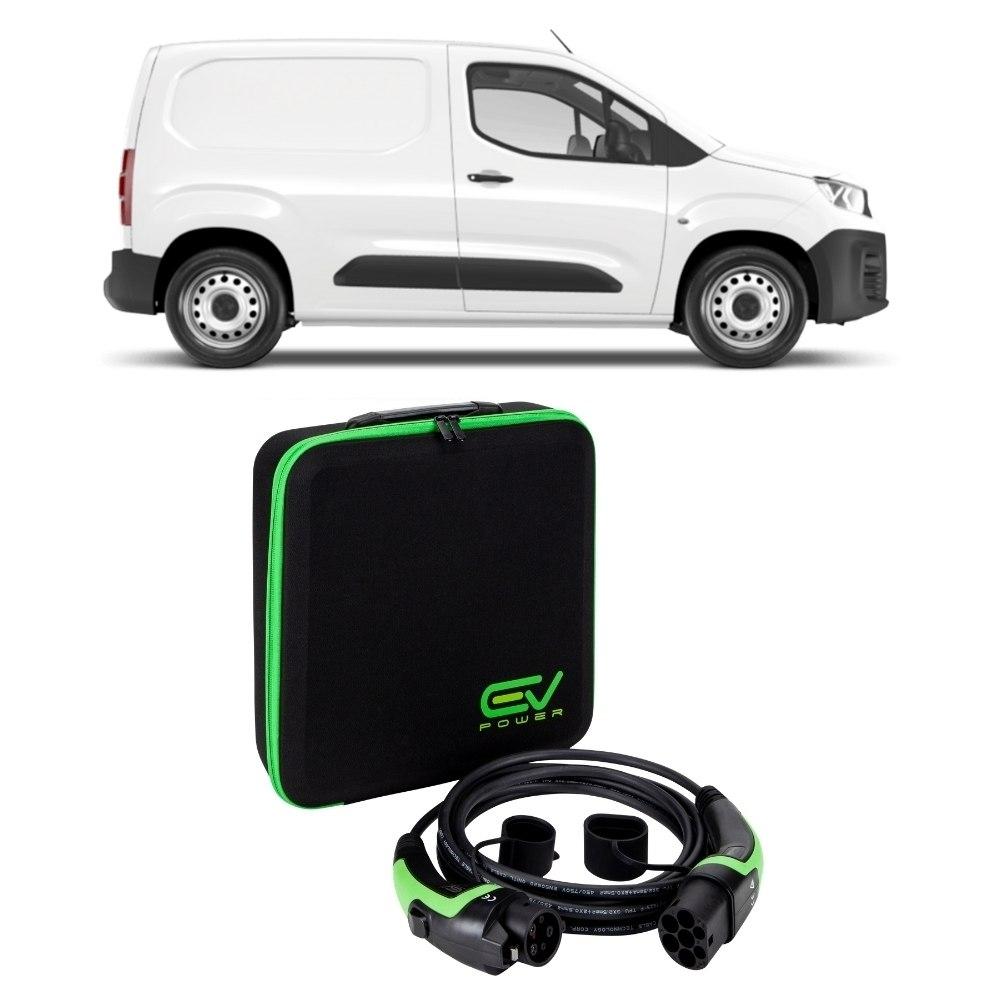

Peugeot Partner EV Charging Cable
Type 2 EV charging cable, up to 7.4kW
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
The Peugeot Partner EV charging cable is a Type 1 to Type 2 lead, available as 16amp or 32amp at 240v, allowing charging of up to 7.3kw per hour. It comes in two lengths, 5m and 10m, and it is built thick: an extra-thick, highly durable cable meant for years of daily use.
It is TUV and CE certified and compatible with UK and EU standards, so you can charge from any household, workstation or public charging unit with a Type 2 socket. The pins of the connectors are insulated with a plastic covering, and the protective rubber caps keep dirt and water off the contacts when the cable is not in use, which is what makes a lead last.
Please note: from 2022 the Peugeot Partner changed to a Type 2 EV. If yours is a 2022 model or newer you will need a Type 2 EV charging cable, not the Type 1 lead on this page. Use the Shop by Cable Type selector at the top of the page and choose the Type 2 option.
All our cables come with a 2 year warranty and free UK delivery on orders over £150. If you are unsure which your van takes, ask us before you order.
Every lead we stock for Peugeot is listed on our Peugeot charging cables page.
Specifications
- Connector
- Type 1 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 Type 1 (SAE J1772), 5-pin
- Cable lengths
- 5m, 10m
- Rated power
- 2.3kW / 3.6kW / 7.2kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 1)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Type 1 vehicle fit
Made for Type 1 (SAE J1772) electric vehicles. The Type 2 version plugs into any UK/EU home wallbox or public AC charge point.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 1 (SAE J1772) connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the Peugeot Partner?
Which cable length should I choose?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- Peugeot Partner
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
