Mercedes EQB Charging Cable, Type 2 to Type 2 Charging Cable
Gallery filters to selection
Operating temperature -30°C to +60°C
Current 6–12A / 16A / 32A
Cable lengths 5m, 10m, 15m, 20m
Connector Type 2 to Type 2 / 3-Pin
Type 25m: 20mUp to 22kW1 & 3 PhaseHome & Public

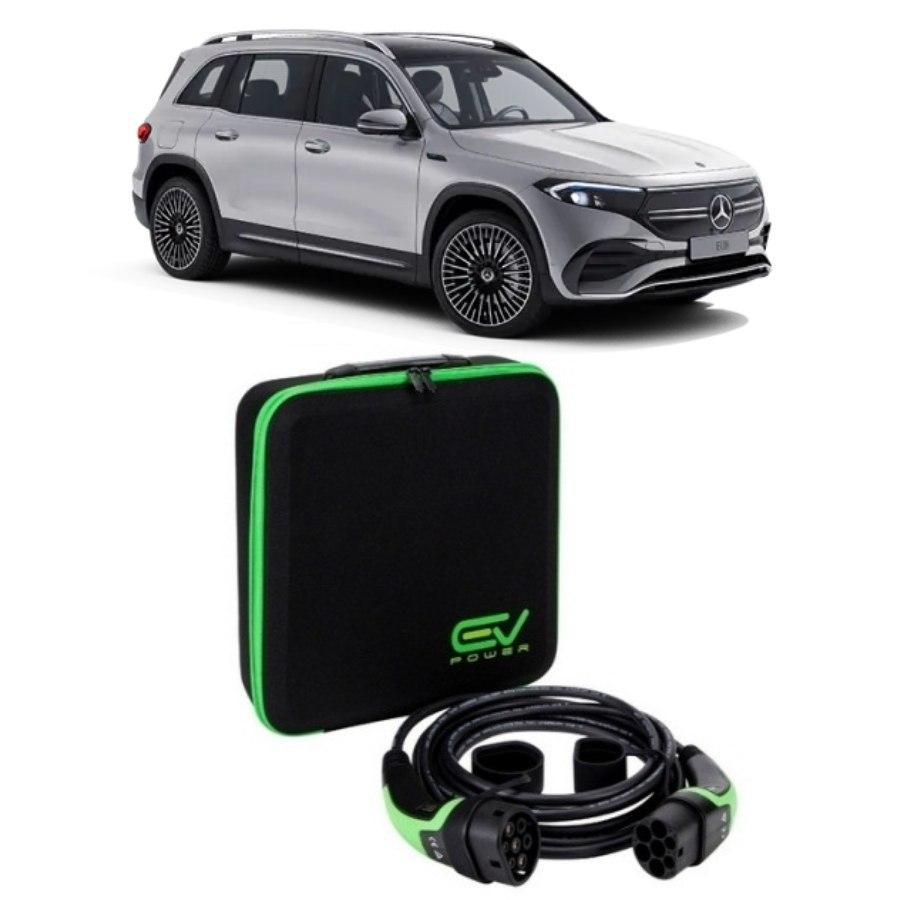

Mercedes EQB Charging Cable

Type 2 EV charging cable: up to 22kW, single and three-phase

In stock
From £124.99complete your selection for the exact price
Choose a Cable Type:
Choose a Cable Length:Wallbox to port, then add 2m
Choose a Rated Power (Charge Speed):
Selected Not with this selection Sold out / locked
Add a storage bag?
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free next-working-day delivery - order before 4pm
  • 30-day returns, we pay the postage if it doesn't fit
  • 2-year minimum manufacturer warranty, and we handle the claim
  • UK-based support, 8am-6pm, from people who drive EVs

Overview

The Mercedes EQB uses a Type 2 connector port, which is the standard across the UK and is compatible with most EV charging stations. Pair it with a Type 2 lead and you can plug in almost anywhere, from a home wallbox to a motorway services post.

How to charge an EQB

  1. Find a charging station. The Mercedes me Charge app will show what is nearby, as will the usual public charge point maps.
  2. Plug the cable into the charging station or outlet, pushing the connector fully home.
  3. Open the charging port on the EQB, either using the charging port button in the car or through the Mercedes me app.
  4. Connect the other end of the cable to the car, again making sure it is properly seated.
  5. Check the charging indicator has lit up. Progress shows on the vehicle's display and in the app.
  6. When charging is complete, unplug at the car, unplug at the charging station, and close the charging port.

Our EQB cables come in 5m, 10m, 15m and 20m, at 16A or 32A, single or three-phase, covering 3.6kW, 7.2kW and 22kW. They are built to IEC 62196-2 (Type 2 / MENNEKES, 7-pin), CE marked and TUV certified, IP55 rated and good from -30°C to +60°C, with a 24 month manufacturer warranty and free next-working-day UK delivery on orders over £150.

Other Mercedes fitments are grouped on our Mercedes charging cables page.

Specifications

Connector
Type 2 to Type 2 / 3-Pin
Standard
IEC 62196-2 (Type 2 / MENNEKES), 7-pin
Cable lengths
5m, 10m, 15m, 20m
Rated power
2.3kW / 3.6kW / 7.2kW / 22kW
Current
6–12A / 16A / 32A
Phase
Single & Three-phase
Conductor
2.5-6mm² copper (by current rating)
Weatherproofing
IP55 (IP67 on Type 2 to 3-Pin)
Operating temperature
-30°C to +60°C
Build
Run-over proof (drive-over resistant)
Certifications
CE marked, TÜV certified, IEC 62196-2 (Type 2)
Warranty
24 months (2 years) manufacturer warranty

Features

  • Run-over proof

    Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).

  • All-weather rated

    Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.

  • Universal Type 2 fit

    Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.

  • CE / TÜV certified

    Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.

  • 3-pin option for home sockets

    Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.

  • Three-phase option

    Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.

Installation

  1. 01Unlock the car - most won't accept a cable while locked.
  2. 02Wallbox end first, then the car. Push until the latch clicks.
  3. 03Check the car shows a charging state before you walk away.
  4. 04Coil loosely into the bag - no tight figure-of-eights.

In the box

  • Charging cable Charging cable 1

FAQs

Is this cable compatible with the Mercedes EQB?
It will, yes. This is a Type 2 charging cable and the Mercedes EQB uses a Type 2 inlet. If you're unsure, check your car's charge port has a 7-pin Type 2 socket, or use our reg checker.
Which cable length should I choose?
Most driveways are fine with 5m. Choose 7-10m if the charge point is wall-mounted away from where you park or your charge port is on the far side of the car, and 15-20m for on-street or awkward layouts. Available here in 5m, 10m, 15m, 20m.
Do I need the 22kW (three-phase) option?
Only if you have a three-phase supply, or you want to be ready for 22kW public AC posts. A three-phase cable still works on a standard single-phase home wallbox; it just charges at up to 7.4kW. Most UK homes are single-phase.
Can I use it at public charge points as well as at home?
Yes. This is a Mode 3 Type 2 cable, so it works at your home wallbox and at any untethered public AC charge point. Rapid DC chargers (motorway) come with their own tethered cables, so you don't need one for those.
What's the 3-pin option for?
The 3-pin (Mode 2 'granny') option lets you top up from a standard domestic socket at up to ~2.3kW when you're away from a wallbox. It's a backup for occasional use, not a daily charging method.
Is it safe to leave outside in the rain?
Yes. The cable and connectors are rated IP55 and built for -30°C to +60°C, so they're safe in UK rain, frost and snow. Don't submerge the connectors in standing water.
What warranty and delivery do I get?
Free next-working-day UK delivery on orders over £150, with 30-day returns on unused items. Warranty: 24 months (2 years) manufacturer warranty.

Compatibility

  • Mercedes EQB
  • All Type 2 electric vehicles (UK & EU, most post-2018)
  • Charger: Ohme
  • Charger: Pod Point
  • Charger: Zappi
  • Charger: Hypervolt
  • Charger: myenergi
  • Charger: Wallbox
  • Charger: EO
  • Charger: Andersen
  • Charger: Tesla
Type 2 to Type 2 Charging Cable / 10M / 16amp (3.6kW) £156.99
