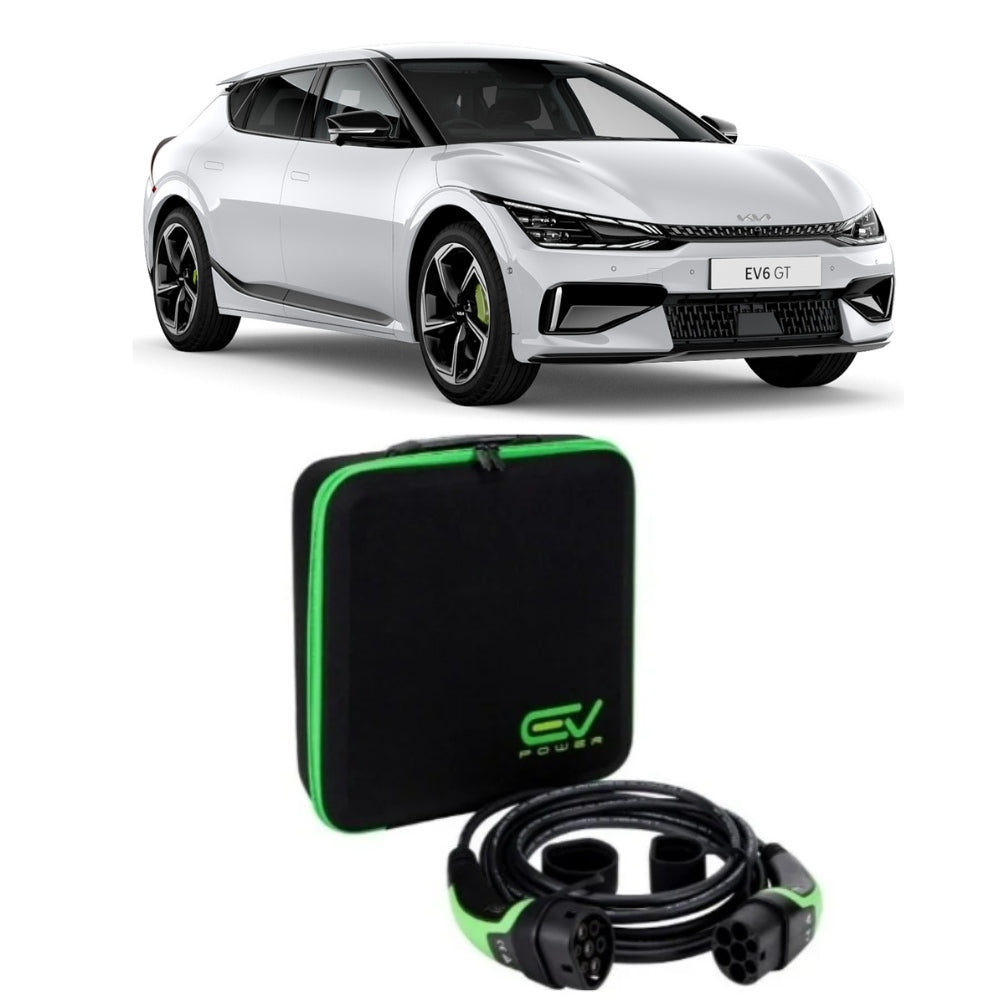

KIA EV6 Charging Cable
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
The Kia EV6 charges through a Type 2 socket, so this is the lead it needs: a cable built to IEC 62196-2 (Type 2 / MENNEKES), 7-pin, in Type 2 to Type 2 for charging stations, or Type 2 to 3-pin for an ordinary household socket.
Pick the length to match where you park. We list 5m, 10m, 15m and 20m. Five metres is plenty for a wallbox beside the car; the longer runs are for chargers on the far side of the drive and public bays where the post ends up on the wrong side.
- 16A or 32A, single or three-phase: 3.6kW, 7.2kW or 22kW
- 2.5 to 6mm² copper conductor, sized by current rating
- IP55 weatherproofing, rated from -30°C to +60°C
- Run-over proof construction
- CE marked and TÜV certified to IEC 62196-2
- 24 month manufacturer warranty
It works with the home chargers you are most likely to meet, Ohme, Pod Point, Zappi, Hypervolt, myenergi, Wallbox, EO, Andersen and Tesla among them, and with any other Type 2 EV in the household. Compare lengths and ratings across the full Type 2 range.
Other Kia fitments are grouped on our Kia charging cables page.
Specifications
- Connector
- Type 2 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m, 20m
- Rated power
- 2.3kW / 3.6kW / 7.2kW / 22kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55 (IP67 on Type 2 to 3-Pin)
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the KIA EV6?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- KIA EV6
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
