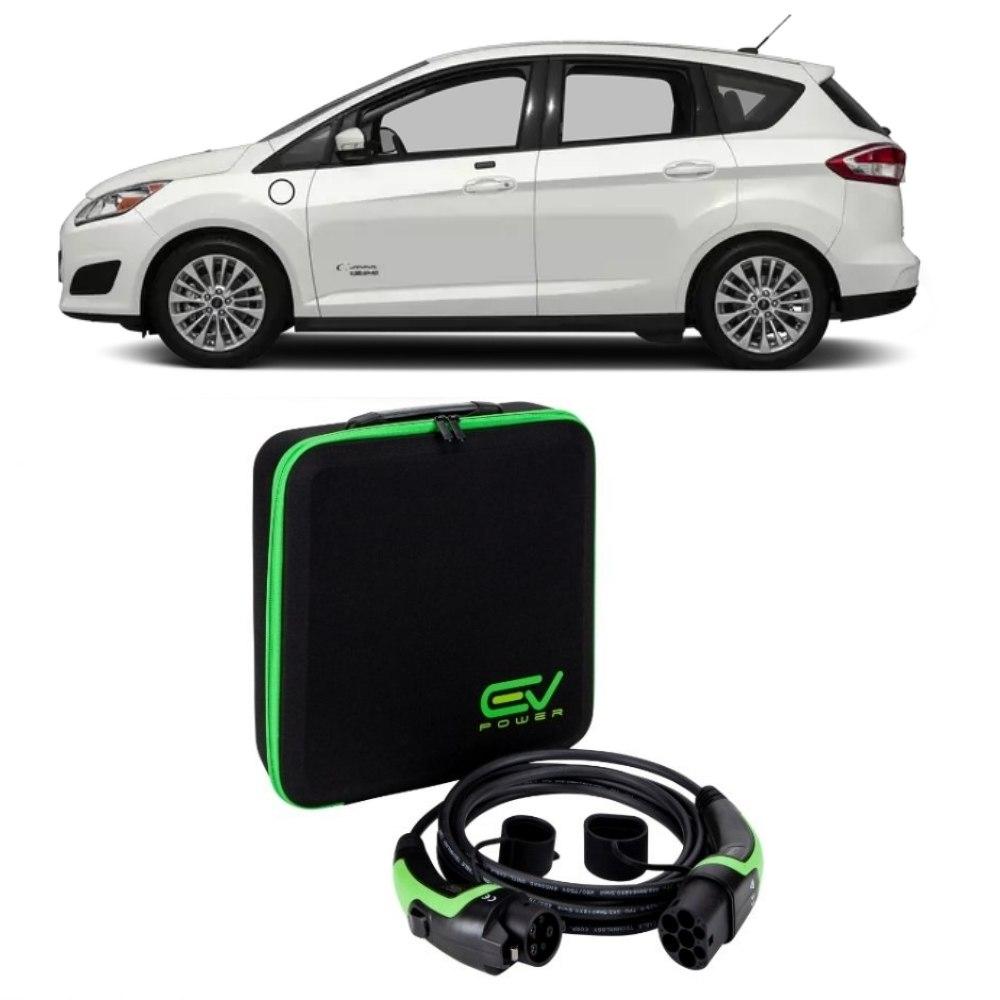

Ford C-Max Energi EV Charging Cable
Type 2 EV charging cable, up to 7.4kW
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
Ford C-Max Energi EV charging cables are available in 16 amp and 32 amp, with a Type 1 to Type 2 connection. The cable will not charge faster than the maximum capacity this car can handle, and the C-Max Energi caps AC charging at 3.7kW.
The lead is a thick, hard-wearing assembly known for its durability, supplied in two lengths, 5 and 10 metres. It is completely weatherproof and its connectors meet UK and EU standards, which means you can charge from any household, workstation or public charging unit with a Type 2 socket into a vehicle with a Type 1 socket. Each of the pins inside the connectors is insulated with a plastic covering, and the rubber covers give the connectors added protection when the cable is not in use.
| Type | Capacity | Time to charge | Our recommendation |
|---|---|---|---|
| Type 1, 1-phase, 16A | 3.7 kW | 2h00m | Best fit |
| Type 1, 1-phase, 32A | 7.4 kW | 2h00m |
All our products come with a 2 year warranty and 30 days to return them. Browse the full EV charging cable range.
Every lead we stock for Ford is listed on our Ford charging cables page.
Specifications
- Connector
- Type 1 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 Type 1 (SAE J1772), 5-pin
- Cable lengths
- 5m, 10m
- Rated power
- 2.3kW / 3.6kW / 7.2kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 1)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Type 1 vehicle fit
Made for Type 1 (SAE J1772) electric vehicles. The Type 2 version plugs into any UK/EU home wallbox or public AC charge point.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 1 (SAE J1772) connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the Ford C-Max Energi?
Which cable length should I choose?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- Ford C-Max Energi
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
