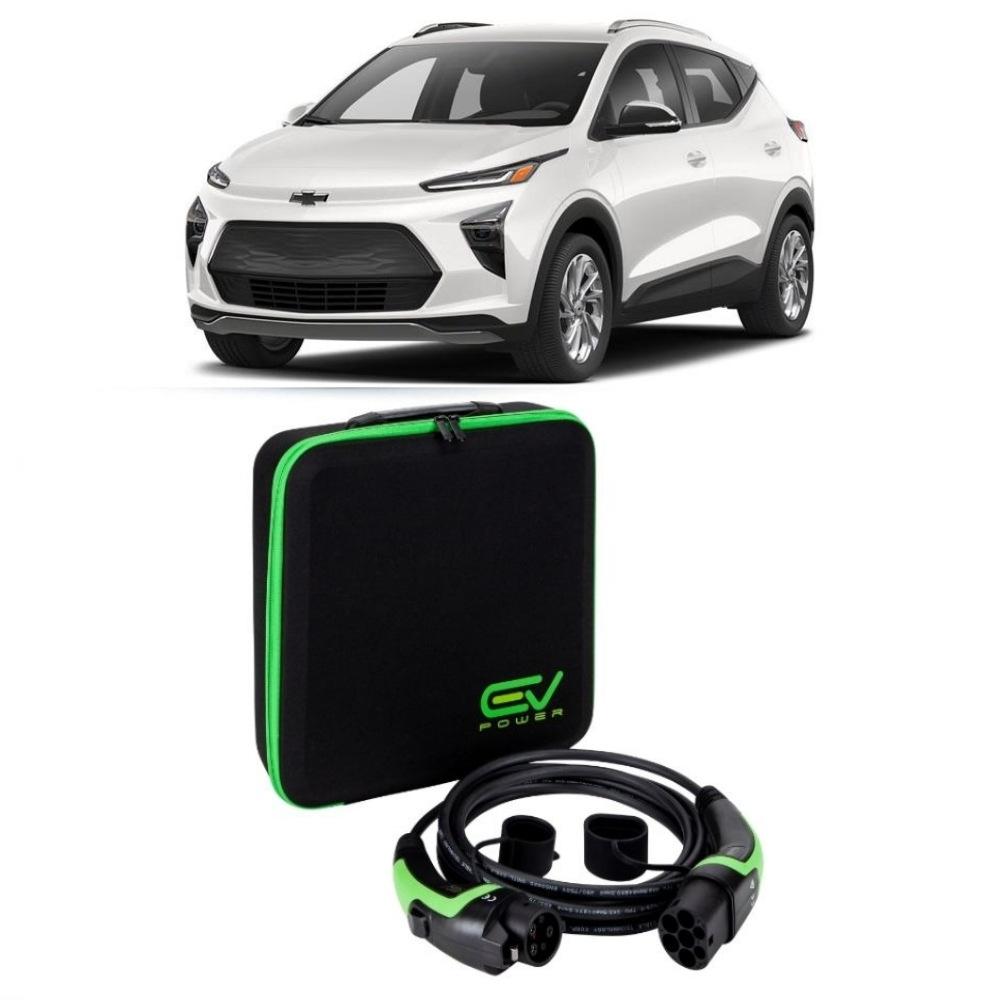

Chevrolet Bolt EV Charging Cable
Type 2 EV charging cable, up to 7.4kW
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
The Chevrolet Bolt uses a Type 1 inlet, so it needs a Type 1 to Type 2 lead: a Type 1 plug at the vehicle end and a Type 2 plug at the charger end. We stock it in two lengths, 5m and 10m, in 16amp and 32amp.
A charging cable only ever charges as fast as the car allows, and the Bolt's ceiling is 7.4kW. That makes the 32amp lead the one to buy. It gets you from empty to full in eight hours flat, against a little over sixteen hours on the 16amp version, which is the difference between an overnight charge and a day and a night.
Because the charger end is Type 2, the same cable works at UK and EU standard charging points, so you can plug in at home, at a workstation or at a public unit with a Type 2 socket while still connecting a Type 1 car at the other end. Attached rubber covers go over the plugs when the cable is not in use, and the whole lead is completely weatherproof, TUV and CE certified.
- Type 1 to Type 2 charging cable
- IP66 rated cable
- TUV and CE certified
- 24 month warranty
- Free next-working-day UK delivery on orders over £150
Charging times
| Type | Capacity | Time to charge | Our recommendation |
|---|---|---|---|
| Type 1, 1-phase, 16A | 3.7 kW | 16h15m | |
| Type 1, 1-phase, 32A | 7.4 kW | 8h00m | Best fit |
The rest of the Chevrolet range sits on our Chevrolet charging cables page.
Specifications
- Connector
- Type 1 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 Type 1 (SAE J1772), 5-pin
- Cable lengths
- 5m, 10m
- Rated power
- 2.3kW / 3.6kW / 7.2kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 1)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Type 1 vehicle fit
Made for Type 1 (SAE J1772) electric vehicles. The Type 2 version plugs into any UK/EU home wallbox or public AC charge point.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 1 (SAE J1772) connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the Chevrolet Bolt?
Which cable length should I choose?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- Chevrolet Bolt
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
