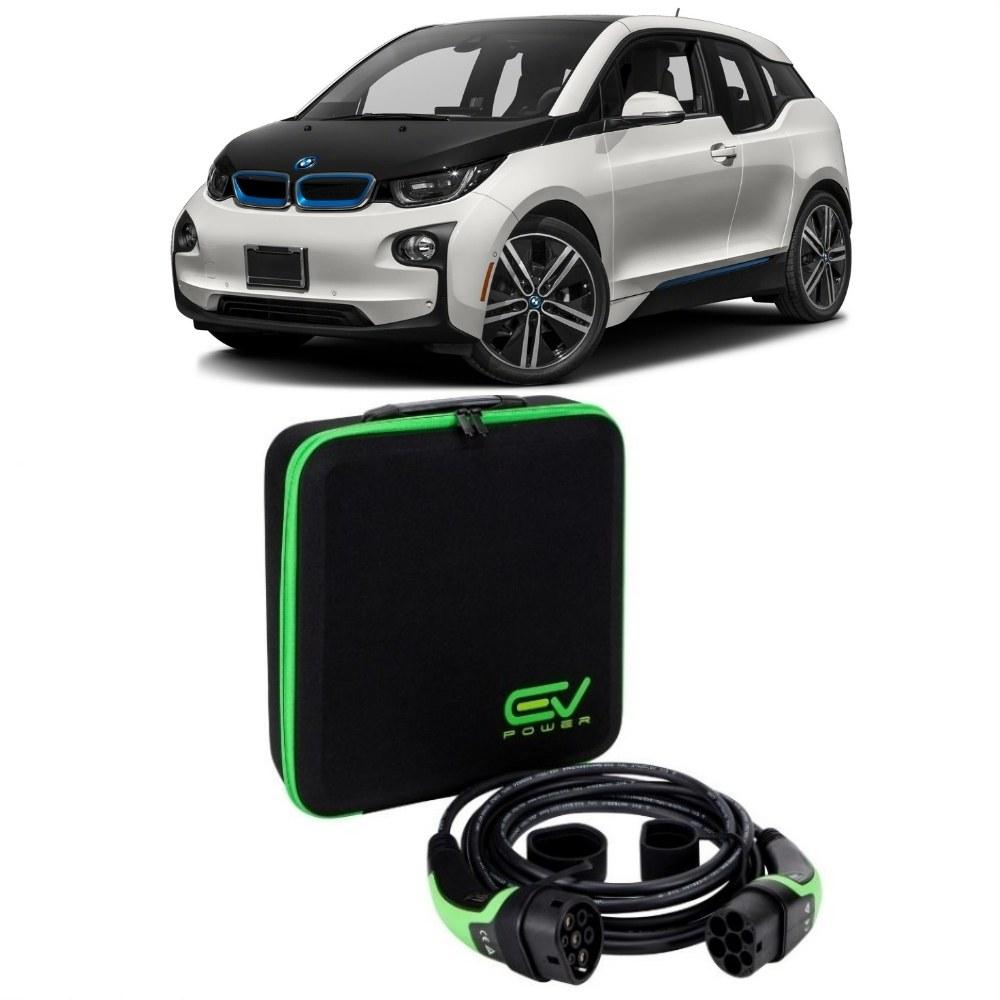

BMW i3 EV Charging Cable
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
The i3 and i3 REX remain a sensible, low-fuss choice years after launch, and they take charge happily at home, at work or on public infrastructure. What you need is the right lead for each of those situations, which for most owners means two cables rather than one.
The two cables worth owning
- Type 2 to Type 2. Your everyday lead, for a home wallbox or any public Type 2 post.
- Type 2 to 3-pin. Plugs into a standard household socket, which makes it the answer when there is no dedicated charge point to hand.
Every i3 cable we sell is CE and TÜV safety certified, IP66 rated against dust and rain, and covered by a two-year warranty.
i3 charging times by cable type
| Cable type | Capacity | i3 (60Ah) | i3 (94Ah) | i3s (120Ah) | i3 REX | Recommended use |
|---|---|---|---|---|---|---|
| Type 2, 1-phase, 16A | Up to 3.7 kW | 8 hours | 10 hours | 12 hours | 8 to 12 hours | Ideal for overnight home charging |
| Type 2, 1-phase, 32A | Up to 7.4 kW | 4 hours | 5 to 6 hours | 6 to 8 hours | 4 to 6 hours | Suitable for home and workplace charging |
| Type 2, 3-phase, 32A | Up to 22 kW | 1 to 2 hours | 2 to 3 hours | 3 to 4 hours | 2 to 3 hours | Best for rapid charging on the go |
| 3-pin to Type 2 | Up to 2.3 kW | 12 to 14 hours | 15 to 17 hours | 17 to 20 hours | 13 to 18 hours | For occasional or extended home charging |
Not sure which rating suits your wallbox? Give us a shout before you order, or browse the full Type 2 charging cables range. UK delivery is free on orders over £150.
The rest of the BMW range sits on our BMW charging cables page.
Specifications
- Connector
- Type 2 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m
- Rated power
- 2.3kW / 3.6kW / 7.2kW / 22kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55 (IP67 on Type 2 to 3-Pin)
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the BMW i3?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- BMW i3
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
