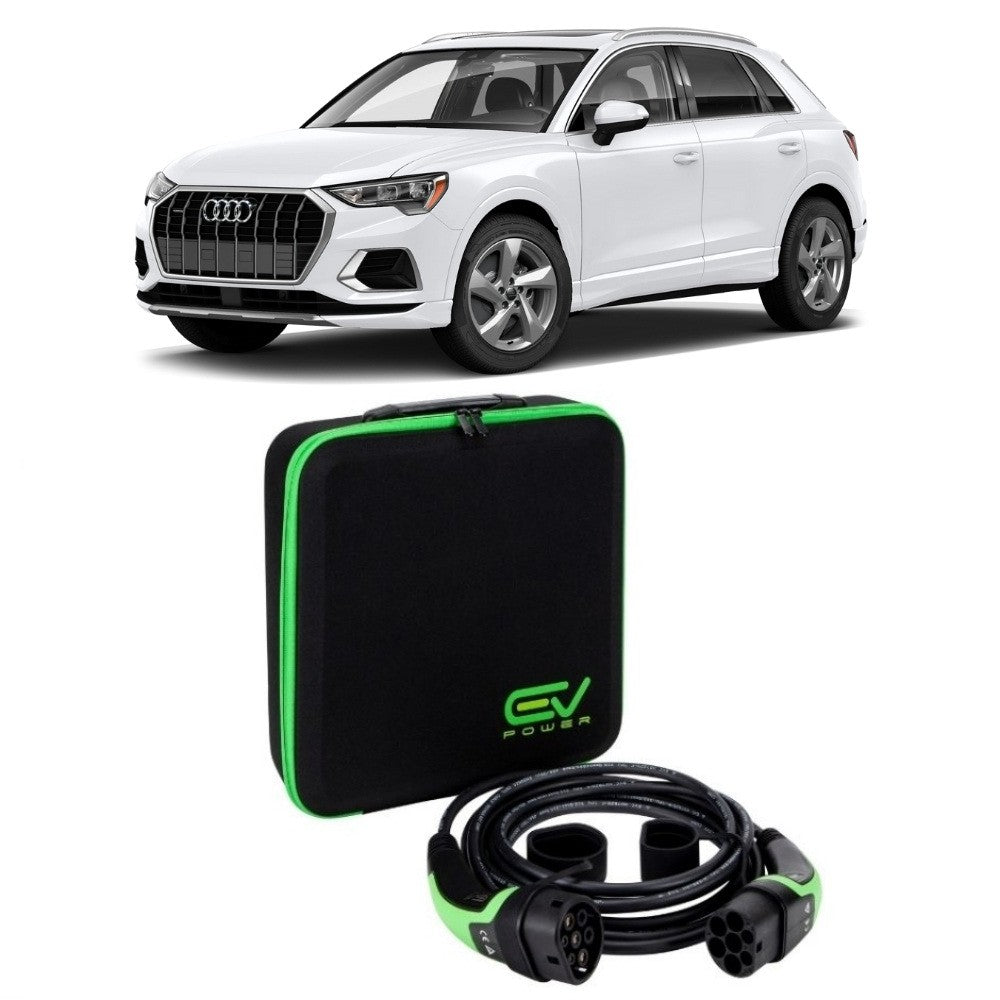

Audi Q3 Charging Cable
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
The Q3 TFSI e is Audi's first compact SUV to go plug-in hybrid, sharing its engine with the VW Golf GTE, so it is quick off the mark and offers several driving modes. For charging you have two options: a Type 2 to Type 2 lead for public and workplace posts and home wallboxes, or a Type 2 to 3-pin lead for a domestic socket. Both come in 5m and 10m.
The car accepts a maximum of 3.6/3.7kW, and that is the number that decides everything. A 16A Type 2 to Type 2 cable delivers all of it and takes the battery from empty to full in around four hours. A 32A three-phase 22kW lead gets you to exactly the same four hours, because the limit is the car, not the cable. We would spend the money on the 16A unless you are buying with a future EV in mind. Our 7.4kW charging cables collection covers the single-phase options.
These leads work at UK and EU standard posts, so workplace, public and household charging are all covered. Rubber caps protect both plugs from dust and weather when the cable is stored, the jacket is rated IP55 and the cable is specified from -30°C to +60°C. CE marked and TÜV certified. Free next-working-day UK delivery on orders over £150 and a 24 month manufacturer warranty.
Not sure which one you need? Call the sales team and we will work it out with you.
Charging times for the Audi Q3 TFSI e
Estimated time from empty to full.
| Charging method | Typically found at | Charging time | Range per hour |
|---|---|---|---|
| 3-pin plug | Home | 6 h | 5 m/h |
| 3.6kW | Home / work | 4 h | 8 m/h |
| 7kW | Home / work / public locations | 4 h | 8 m/h |
| 22kW | Work / public locations | 4 h | 8 m/h |
The rest of the Audi range sits on our Audi charging cables page.
Specifications
- Connector
- Type 2 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m, 20m
- Rated power
- 2.3kW / 3.6kW / 7.2kW / 22kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55 (IP67 on Type 2 to 3-Pin)
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the Audi Q3?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- Audi Q3
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
