10m EV Charging Cables
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
Ten metres is the length people reach for when five will not do. We stock four different 10m leads, and they do quite different jobs:

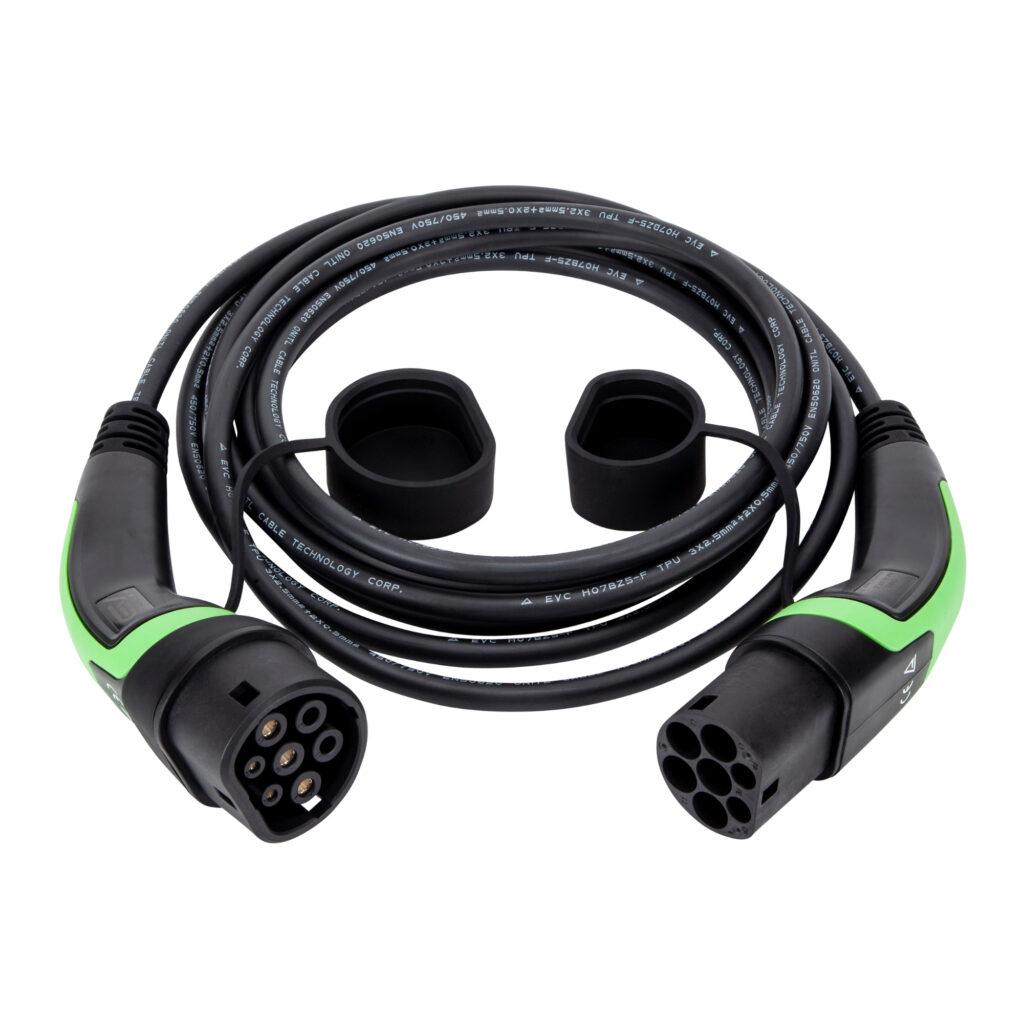

- 10m Type 2 to Type 2 charging cable: the everyday lead, for charging at home and at public Type 2 stations alike.
- 10m 3-pin to Type 2 charging cable: for charging from a standard household outlet where there is no dedicated charging station.
- 10m Type 2 extension cable: extra reach for the times your main cable falls short of the charging point.
- 10m tethered charging cable: stays attached to a fixed home charging station, so you park and plug in.
The extra reach matters more than people expect. It covers a charger fitted around the side of the house, a bay where you cannot park nose-on, and public posts that end up on the wrong side of the car. Speed does not suffer for the length either: a 10m cable delivers exactly the same charging rate as a shorter one, and the weather-resistant build means it copes with being left out.
Every 10m cable carries a two-year warranty, works with all UK charging stations, and is CE and TUV safety certified with an IP66 rating, so rain and dust are not a problem in British weather.
10m EV charging cables: charging speeds by type
| Cable type | Charging capacity | Charging speed | Recommended use |
|---|---|---|---|
| 10m Type 2, 1-phase, 16A | Up to 3.7 kW | 6-8 hours for a full charge | Ideal for overnight home charging |
| 10m Type 2, 1-phase, 32A | Up to 7.4 kW | 3-4 hours for a full charge | Suitable for faster home or workplace charging |
| 10m Type 2, 3-phase, 32A | Up to 22 kW | 1-2 hours for a full charge | Best for rapid charging on the go |
| 10m 3-pin to Type 2 | Up to 2.3 kW | 8-12 hours for a full charge | For occasional or extended home charging |
Need more reach still? Our 15m EV charging cables go further, and the full Type 2 range covers every other length we hold.
Specifications
- Connector
- Type 2 to Type 2 / 3-Pin, Type 2 to Type 2 extension
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 10m
- Rated power
- 2.3kW / 3.6kW / 7.2kW / 22kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55 (IP67 on Type 2 to 3-Pin)
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Will this cable fit my car?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
