EV Charger Wall Mounting Brackets

Wall mounting brackets attach an EV wallbox to a brick, render, timber-frame or post-mounted pole, universal and brand-specific brackets for tidy installs across UK domestic and commercial sites. The right bracket reduces install time, improves long-term durability, and avoids the "wallbox-on-bare-screws" look that ages badly.

When you need a separate bracket

Most wallboxes ship with a wall plate: a basic mounting bracket included in the box, suitable for solid brick or block walls. Buy a separate bracket if:

• Your wall is render, plasterboard, timber-frame or other non-solid material: needs a longer-screw or backing-plate bracket.
• You're mounting on a post or pole: driveway-end installation away from the building.
• You're mounting in a covered way (carport, garage): sometimes needs a tilt-bracket to keep the connector pointing the right way.
• You're upgrading from an older bracket: sometimes the bracket fails or is rust-stained before the wallbox.

Bracket types we stock

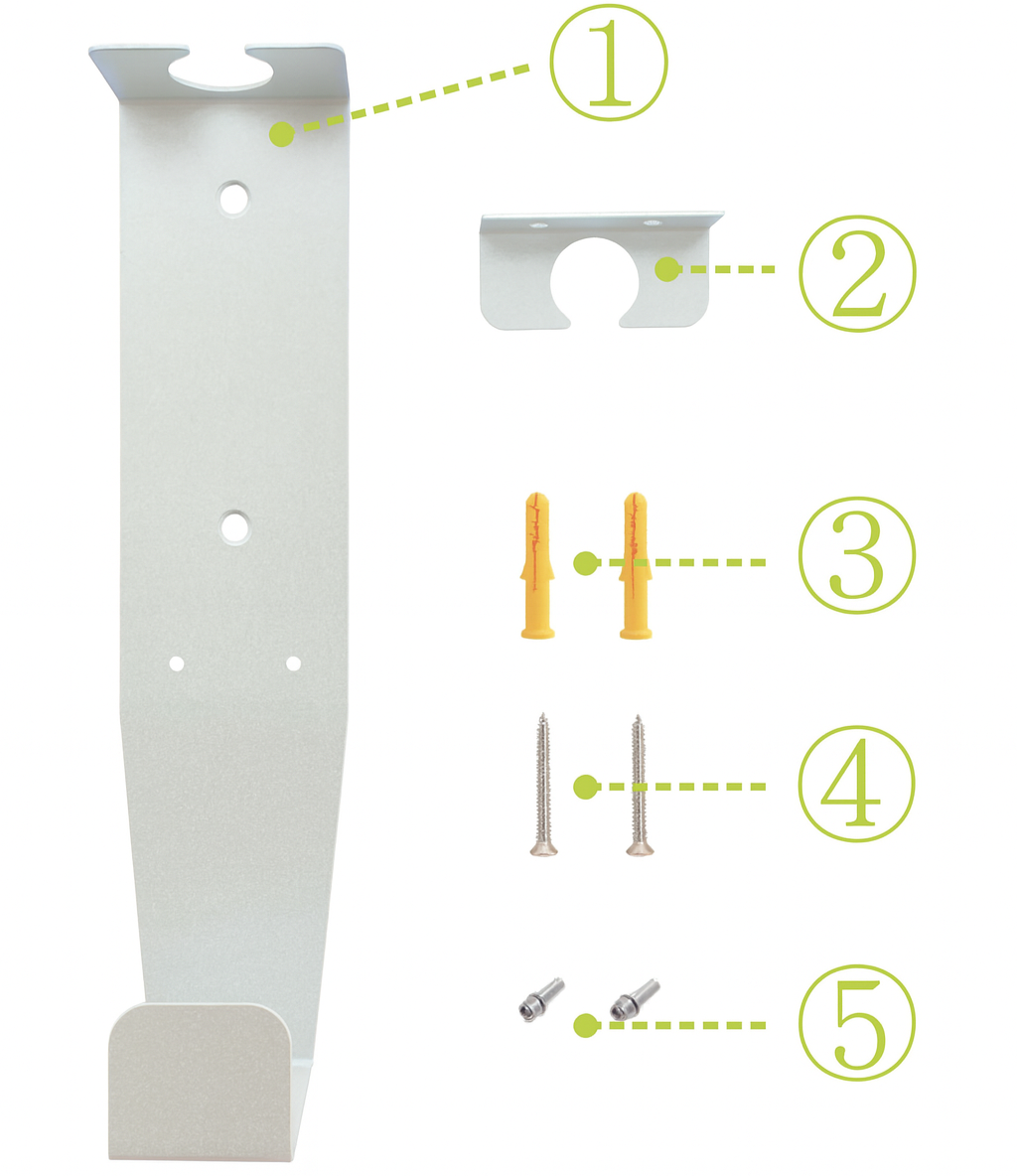

• Universal Type 2 wall plate: fits most rear-mount wallboxes (Ohme, Easee, Project EV, Pod Point variant). Stainless steel fixings. £20-40.
• Brand-specific brackets: Ohme, Pod Point, Zappi, Hypervolt, Andersen, Rolec. Designed to mount the specific wallbox without compromise. £30-80.
• Pole / post mount: for free-standing driveway installs away from the house. Requires a 50-100mm steel post embedded in concrete. £80-150.
• Render / plasterboard backing plate: distributes mounting load across studs / blockwork behind a soft surface. £30-60.
• Tilt bracket / angle adjuster: angles the wallbox 5-15° to optimise cable drop angle. £40-80. Niche.

Mounting depth and clearance

Most UK wallboxes need:

• 30-50mm clearance behind for cable entry from the wall: match this with the bracket's stand-off depth.
• 200-300mm clearance below for the cable to hang naturally without stress.
• 50-100mm clearance above for ventilation (some wallboxes need this; check your model's install datasheet).

Fixing materials by wall type

• Solid brick or block: 8mm masonry plugs + 8mm × 80mm screws. Standard.
• Render over block: same as above, drill through the render to the substrate.
• Timber frame: 6mm × 80mm coach screws into structural studs. Don't fix to plasterboard alone.
• Plasterboard with no stud behind: heavy-duty butterfly anchor or chemical anchor. Or fit a backing plate.
• Steel post: purpose-built post-mount bracket; don't try to drill steel posts on-site.

Pairing with cable management

The bracket holds the wallbox; the cable holder manages the cable. Both work together: bracket positions the wallbox, holder positions the cable when not charging. Buy them together for a tidy install.

Outdoor exposure

UK weather is unforgiving. Use stainless steel or galvanised fixings (not plain steel, not chrome-plated) or you'll see rust streaks down the wall within 6 months. Most quality brackets specify A2 stainless minimum; A4 (marine grade) for coastal locations.

Installation

Wallbox + bracket install must be by a qualified electrician working to BS 7671 18th Edition. Bundle with our nationwide installer network at checkout: survey within 2 working days, completion within 14.

What we stock

• Universal Type 2 wall plates (stainless steel).
• Brand-specific brackets for Ohme, Pod Point, Zappi, Hypervolt, Andersen, Rolec, Project EV.
• Driveway pole-mount brackets for free-standing installs.
• Render / soft-surface backing plates.
• Anti-rust replacement screws and plugs in stainless and galvanised.
