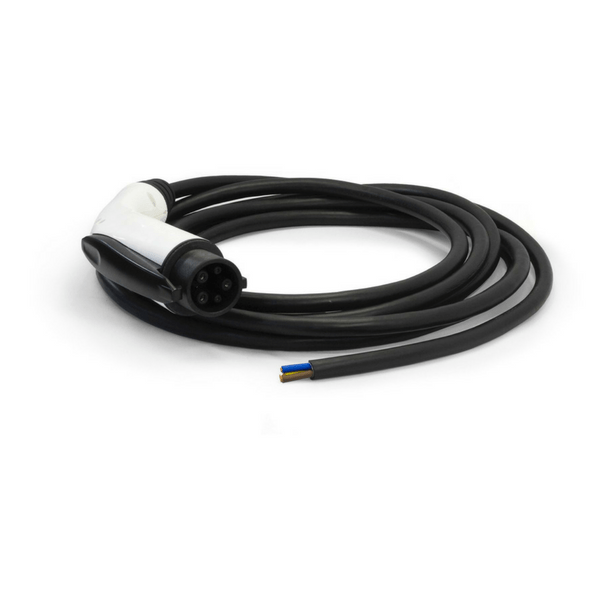

Type 1 Tethered Cables
Gallery filters to selection
Operating temperature -30°C to +60°C
Current 32A
Rated power 7.2kW
Cable lengths 5m, 10m
Type 15m: 10mUp to 7.4kW

Type 1 Tethered Cables

Type 1 EV charging cable: up to 7.4kW

In stock
From £145.99complete your selection for the exact price
Choose a Cable Length:Wallbox to port, then add 2m
Choose a Rated Power (Charge Speed):
Selected Not with this selection Sold out / locked
Add a storage bag?
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free next-working-day delivery - order before 4pm
  • 30-day returns, we pay the postage if it doesn't fit
  • 2-year minimum manufacturer warranty, and we handle the claim
  • UK-based support, 8am-6pm, from people who drive EVs

Overview

These Type 1 tethered charging cables are for professional EV charging station installers only. A tethered lead is permanently attached to the EV charging station rather than unplugged and put away after every session.

For a car that lives on the same drive or in the same garage every night, that is a real convenience: no messing about with storing the cable away when you are using it every evening.

The specification is a Type 1 to Type 1 connection, single-phase, 32A, rated to 7.2kW, in 5m and 10m. The cable is IP55 rated, rated for use from -30°C to +60°C, and built run-over proof so it survives being driven across. CE marked and TUV certified, with a 24 month manufacturer warranty.

Related leads are grouped in our replacement EV cables.

Specifications

Connector
Type 1 tethered
Standard
IEC 62196-2 Type 1 (SAE J1772), 5-pin
Cable lengths
5m, 10m
Rated power
7.2kW
Current
32A
Phase
Single-phase
Conductor
2.5-6mm² copper (by current rating)
Weatherproofing
IP55
Operating temperature
-30°C to +60°C
Build
Run-over proof (drive-over resistant)
Certifications
CE marked, TÜV certified, IEC 62196-2 (Type 1)
Warranty
24 months (2 years) manufacturer warranty

Features

  • Run-over proof

    Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).

  • All-weather rated

    Rated IP55 and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.

  • Type 1 tethered lead

    A tethered lead for use with a wallbox, made for Type 1 (SAE J1772) electric vehicles.

  • CE / TÜV certified

    Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 1 (SAE J1772) connector standard.

Installation

  1. 01Unlock the car - most won't accept a cable while locked.
  2. 02Wallbox end first, then the car. Push until the latch clicks.
  3. 03Check the car shows a charging state before you walk away.
  4. 04Coil loosely into the bag - no tight figure-of-eights.

In the box

  • Charging cable Charging cable 1

FAQs

Will this cable fit my car?
Yes, if your car has a Type 1 inlet. Almost every EV sold new in the UK since 2018 uses Type 2; Type 1 appears on older and imported models. Check your charge port has a 5-pin Type 1 socket, or use our reg checker.
Which cable length should I choose?
Most driveways are fine with 5m. Choose 7-10m if the charge point is wall-mounted away from where you park or your charge port is on the far side of the car, and 15-20m for on-street or awkward layouts. Available here in 5m, 10m.
Can I use it at public charge points as well as at home?
Yes. This is a Mode 3 Type 2 cable, so it works at your home wallbox and at any untethered public AC charge point. Rapid DC chargers (motorway) come with their own tethered cables, so you don't need one for those.
Is it safe to leave outside in the rain?
Yes. The cable and connectors are rated IP55 and built for -30°C to +60°C, so they're safe in UK rain, frost and snow. Don't submerge the connectors in standing water.
What warranty and delivery do I get?
Free next-working-day UK delivery on orders over £150, with 30-day returns on unused items. Warranty: 24 months (2 years) manufacturer warranty.

Compatibility

  • All Type 1 electric vehicles (UK & EU, most post-2018)
  • Charger: Ohme
  • Charger: Pod Point
  • Charger: Zappi
  • Charger: Hypervolt
  • Charger: myenergi
  • Charger: Wallbox
  • Charger: EO
  • Charger: Andersen
  • Charger: Tesla
5M / 32amp (7.2kW) £145.99
