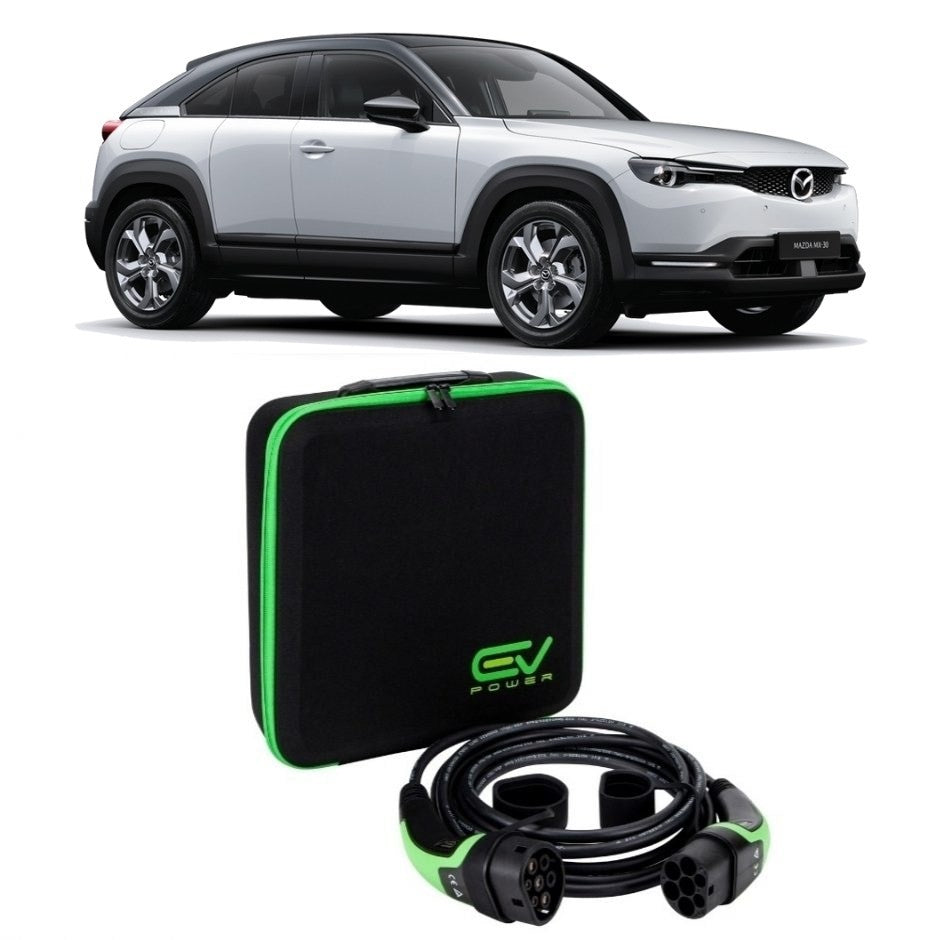

Mazda MX-30 Charging Cable
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
The MX-30 is Mazda's take on the electric crossover, and a deliberately modest one: a 35.5 kWh battery (30.0 kWh usable) giving somewhere around 124 miles (200 km) of range. Smaller battery, shorter charge, which is not a bad trade if your driving is mostly local.
How long does an MX-30 take to charge?
Three things decide it: the battery capacity, the output of the charge point, and the cable in between. From empty, a charging station with an output of at least 7.2 kW will fill the MX-30 in approximately 7 hours, which is a comfortable overnight. Step up to a 22 kW fast charger and you are looking at roughly 30 minutes to 80%. Worth knowing that habitual fast charging puts more strain on the cells and will shorten the battery's overall lifespan, so we would use it when you need it rather than as the default.
Can I charge it from a three-pin socket?
Yes. The MX-30 comes with a Type 2 AC charging cable that has a Type 2 plug at the car end and a standard household plug at the other, so it will run from an ordinary domestic outlet. A typical UK three-pin socket delivers around 2.3 kW, which works out at approximately 20 hours from empty to full. Fine as an occasional fallback, slow as a daily habit.
What we stock for the MX-30
- Type 2 to Type 2 and Type 2 to 3-pin, to IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- 16A and 32A, single and three-phase, rated 3.6kW, 7.2kW and 22kW
- 5m, 10m, 15m and 20m lengths, 2.5-6mm² copper conductors
- IP55 weatherproofing, run-over proof, rated -30°C to +60°C
- CE marked, TÜV certified, 24 month manufacturer warranty
Not sure which to order? Our Type 2 charging cables collection lists everything by length and rating, and we are happy to talk it through.
Other Mazda fitments are grouped on our Mazda charging cables page.
Specifications
- Connector
- Type 2 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m, 20m
- Rated power
- 2.3kW / 3.6kW / 7.2kW / 22kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55 (IP67 on Type 2 to 3-Pin)
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the Mazda MX-30?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- Mazda MX-30
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
