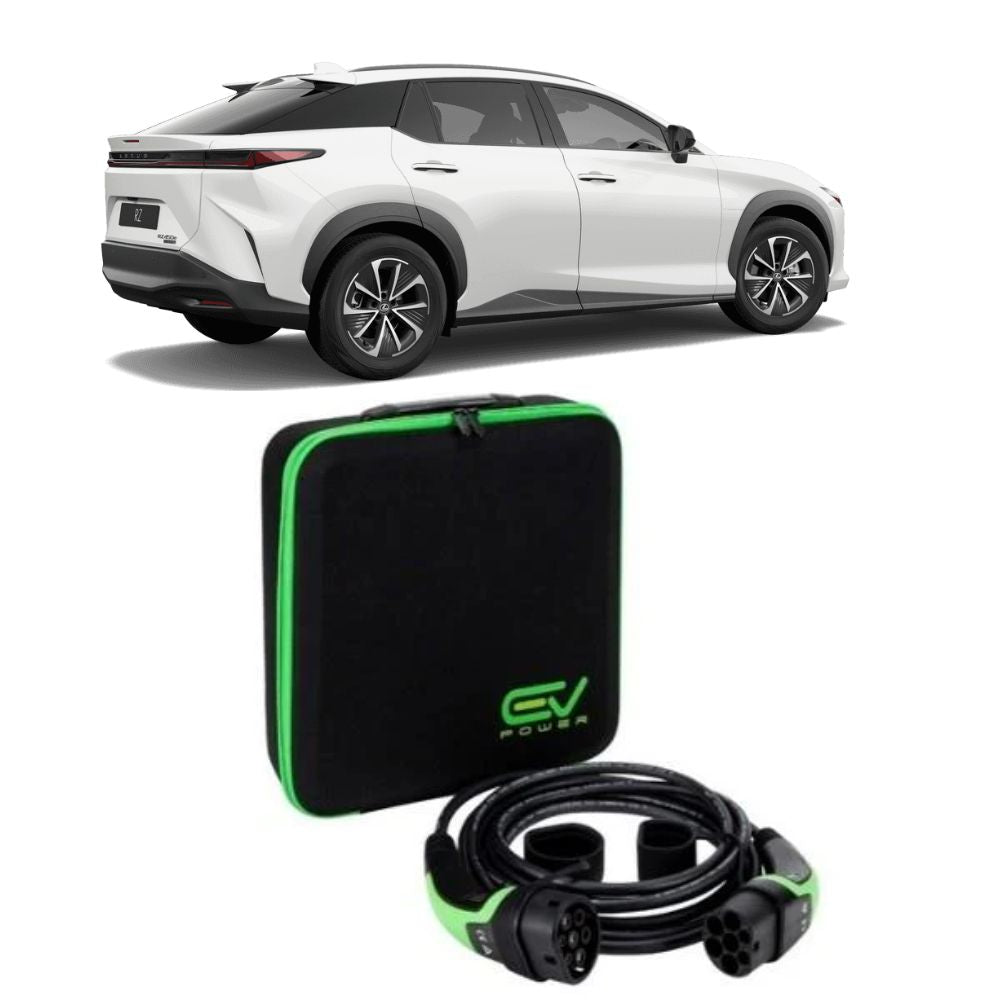

Lexus RZ Charging Cable
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
The Lexus RZ is built to be easy to live with on charge, at home, at work or on the public network. Two leads cover almost every situation. A Type 2 to Type 2 cable is the one you use day to day, on a home wallbox or a public post. A Type 2 to 3-pin lead lets you charge from an ordinary household socket when there is no dedicated charge point, which is worth having in the boot even if it never becomes your main method.
RZ charging cables: types and times
| Cable type | Capacity | Charging time | Best fit |
|---|---|---|---|
| Type 2, single-phase, 16A | 3.7 kW | 28 hours 45 mins | Overnight charging |
| Type 2, single-phase, 32A | 7.4 kW | 14 hours 30 mins | Home or workplace charging |
| Type 2, three-phase, 32A | 22 kW | 9 hours 45 mins | Fastest AC option |
| Type 2 to 3-pin | 2.3 kW | 36 hours | Occasional charging at home |
Those times are from empty to full, which is a state most drivers rarely reach. In practice you are topping up from half, so halve the numbers in your head.
What you get
- 16A and 32A single-phase at 3.6kW and 7.4kW
- 32A three-phase at 22kW
- Type 2 to Type 2 to IEC 62196 (MENNEKES)
- 5m and 10m, lightweight and flexible enough to coil and stow easily
- Long-lasting and reliable in daily use
- IEC certified, TÜV certified, CE compliant
Every RZ cable carries a 24 month manufacturer warranty and qualifies for free next-working-day UK delivery on orders over £150, with 30 days to return it. The wider range is in our Type 2 charging cables collection. If you would rather talk it through before choosing an RZ cable, our team is on the end of the phone.
Other Lexus fitments are grouped on our Lexus charging cables page.
Specifications
- Connector
- Type 2 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m, 20m
- Rated power
- 2.3kW / 3.6kW / 7.2kW / 22kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55 (IP67 on Type 2 to 3-Pin)
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the Lexus RZ?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- Lexus RZ
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
