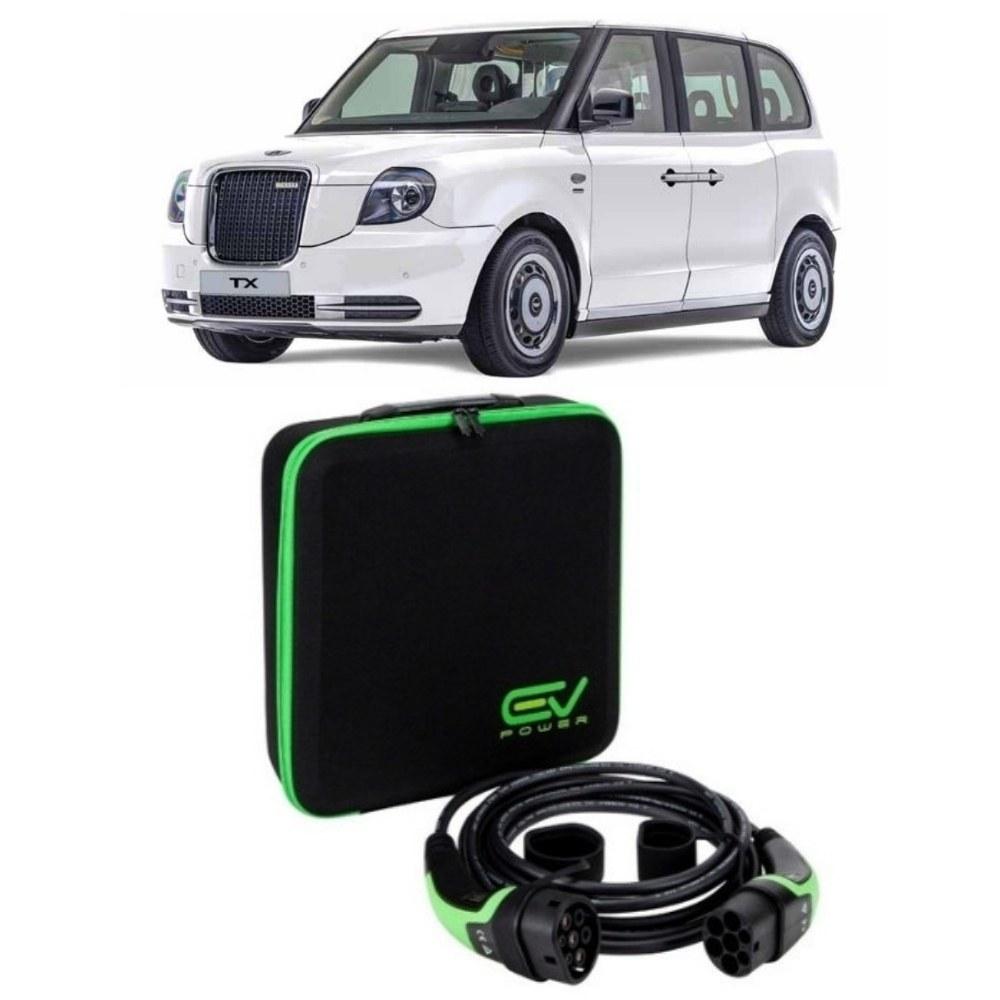

LEVC TX Electric Taxi Charging Cable
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
The LEVC TX brought the London black cab into the electric age, and it did it differently from most. There is a 1.5 litre petrol engine under the bonnet, but it never drives the wheels: its only job is topping up the battery pack. That makes the TX a range extender rather than a hybrid. Around eighty miles come from a charge, and the generator covers the rest of a shift. Plug it in during working hours and it takes roughly half an hour to put charge back.
For a working vehicle the plug matters more than it does on a private car, because downtime costs money. This is a Type 2 lead built to IEC 62196-2 (Type 2 / MENNEKES, 7-pin), so it connects the cab to any UK or EU standard charging post: the depot, a rank-side unit, or a public car park while you take a break.
- Lengths: 5m, 10m, 15m and 20m
- 16A or 32A, single or three-phase: 3.6kW, 7.2kW or 22kW
- 2.5-6mm² copper conductors, sized to the current rating
- IP55 weatherproofing, rated from -30°C to +60°C
- Run-over proof construction, which counts for a lot on a busy rank
- CE marked and TUV certified
Cab work is hard on kit. Buy the 32A lead, and buy a length that reaches without lying across a walkway. Every cable carries a 24 month manufacturer warranty and free next-working-day UK delivery on orders over £150.
The rest of the LEVC range sits on our LEVC charging cables page.
Specifications
- Connector
- Type 2 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m, 20m
- Rated power
- 2.3kW / 3.6kW / 7.2kW / 22kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55 (IP67 on Type 2 to 3-Pin)
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-

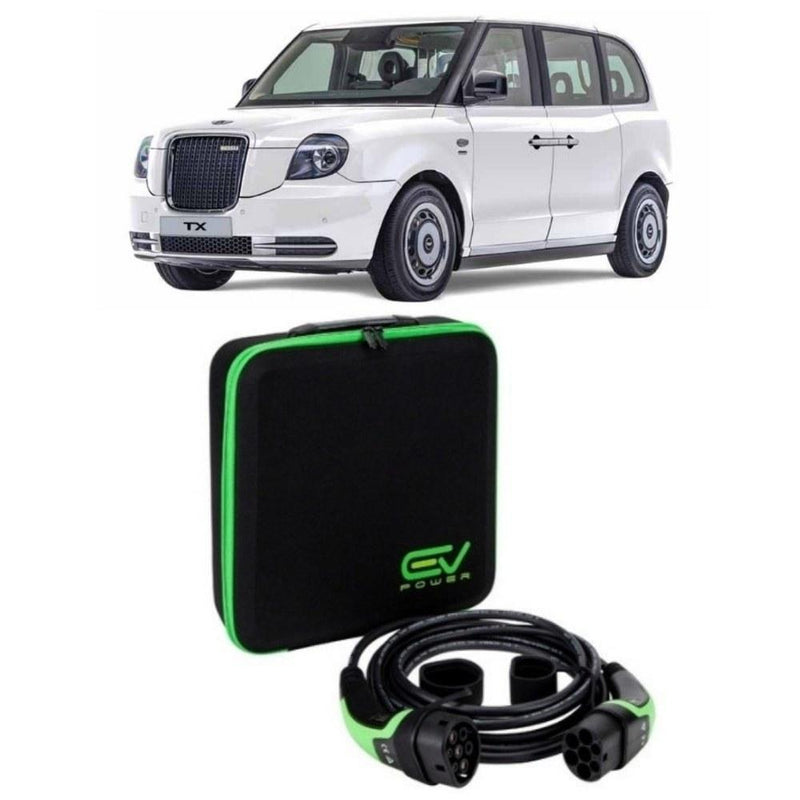

Charging cable
1
FAQs
Is this cable compatible with the LEVC TX Electric Taxi?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- LEVC TX Electric Taxi
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
