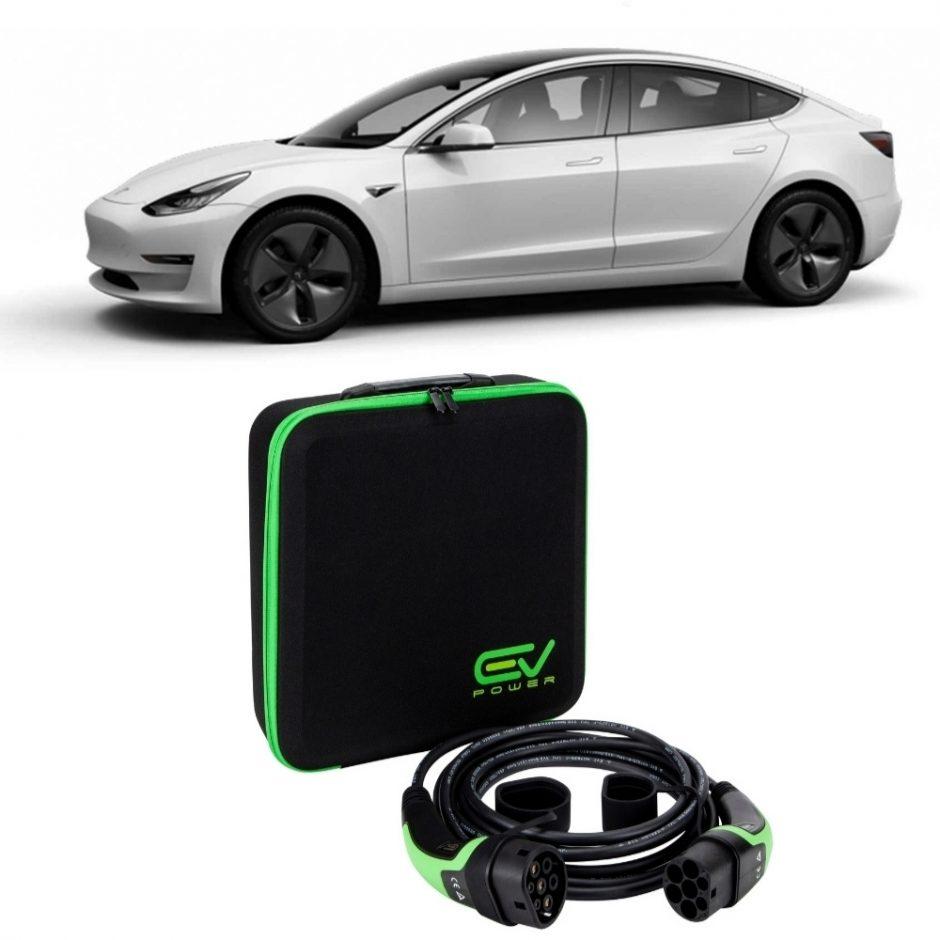

Tesla Model 3 Charging Cable
Type 2 EV charging cable: up to 22kW, single and three-phase
- Free next-working-day delivery - order before 4pm
- 30-day returns, we pay the postage if it doesn't fit
- 2-year minimum manufacturer warranty, and we handle the claim
- UK-based support, 8am-6pm, from people who drive EVs
Overview
The Model 3 is an easy car to live with, and the cable you keep in the boot is a decent part of why. Ours are sized for real driveways and real car parks, in 5m, 10m, 15m and 20m, so you are not stretching a short lead across a bay or coiling ten spare metres every night.
Which cable suits your setup
- Type 2 to Type 2: the standard choice for Model 3 drivers. It works at home and at public charge points, and it is the one to reach for day to day.
- Type 2 to 3-Pin: plugs into an ordinary household socket, which makes it the answer when there is no dedicated charge point available.
Every Model 3 cable we supply is CE marked and TÜV certified, weather-resistant to IP66 and covered by a 24 month manufacturer warranty.
Model 3 charging times by cable
| Cable type | Capacity | Charging time | Recommended use |
|---|---|---|---|
| Type 2, 1-phase, 16A | Up to 3.7 kW | 18 to 20 hours | Ideal for overnight home charging |
| Type 2, 1-phase, 32A | Up to 7.4 kW | 8 to 10 hours | Suitable for faster home or workplace charging |
| Type 2, 3-phase, 32A | Up to 22 kW | 3 to 4 hours | Best for rapid charging on the go |
| 3-Pin to Type 2 | Up to 2.3 kW | 24 to 30 hours | For occasional or extended home charging |
Have a look through our EV charging cables for the full length range, or straight to the 22kW three-phase cables if you have access to a three-phase supply. Tell us where you park and what you are plugging into and we will point you at the right one. Free next-working-day UK delivery on orders over £150.
The rest of the Tesla range sits on our Tesla charging cables page.
Specifications
- Connector
- Type 2 to Type 2 / 3-Pin
- Standard
- IEC 62196-2 (Type 2 / MENNEKES), 7-pin
- Cable lengths
- 5m, 10m, 15m, 20m
- Rated power
- 2.3kW / 3.6kW / 7.2kW / 22kW
- Current
- 6–12A / 16A / 32A
- Phase
- Single & Three-phase
- Conductor
- 2.5-6mm² copper (by current rating)
- Weatherproofing
- IP55 (IP67 on Type 2 to 3-Pin)
- Operating temperature
- -30°C to +60°C
- Build
- Run-over proof (drive-over resistant)
- Certifications
- CE marked, TÜV certified, IEC 62196-2 (Type 2)
- Warranty
- 24 months (2 years) manufacturer warranty
Features
-
Run-over proof
Built to take the weight of a car, so you can drive over the cable without damaging it (protection against pressure).
-
All-weather rated
Rated IP55, with the Type 2 to 3-Pin version rated IP67, and built to operate from -30°C to +60°C, so it charges reliably through UK rain, frost and summer heat.
-
Universal Type 2 fit
Works with all Type 2 electric vehicles and every UK/EU home wallbox and public AC charge point. No brand lock-in.
-
CE / TÜV certified
Independently certified to CE and TÜV, and built to the IEC 62196-2 Type 2 connector standard.
-
3-pin option for home sockets
Choose the 3-pin version to top up from a standard UK domestic socket when there is no wallbox nearby. It is a separate cable option, not an attachment.
-
Three-phase option
Pick the 32A three-phase version to charge at up to 22kW where a three-phase supply is available. The single-phase versions charge at up to 7.2kW on a standard home wallbox.
Installation
- 01Unlock the car - most won't accept a cable while locked.
- 02Wallbox end first, then the car. Push until the latch clicks.
- 03Check the car shows a charging state before you walk away.
- 04Coil loosely into the bag - no tight figure-of-eights.
In the box
-
Charging cable
1
FAQs
Is this cable compatible with the Tesla Model 3?
Which cable length should I choose?
Do I need the 22kW (three-phase) option?
Can I use it at public charge points as well as at home?
What's the 3-pin option for?
Is it safe to leave outside in the rain?
What warranty and delivery do I get?
Compatibility
- Tesla Model 3
- All Type 2 electric vehicles (UK & EU, most post-2018)
- Charger: Ohme
- Charger: Pod Point
- Charger: Zappi
- Charger: Hypervolt
- Charger: myenergi
- Charger: Wallbox
- Charger: EO
- Charger: Andersen
- Charger: Tesla
What customers say about us
-
First class service
First class service. Ordered 15m cable and it was delivered next day. Minor hiccup in that the accompanying bag was missing. Quick email to Jake at EV Cable Hub and the bag arrived next working day. 1st class product and even better customer service. Thank you.
Bought from us? A review helps the next person choose.
